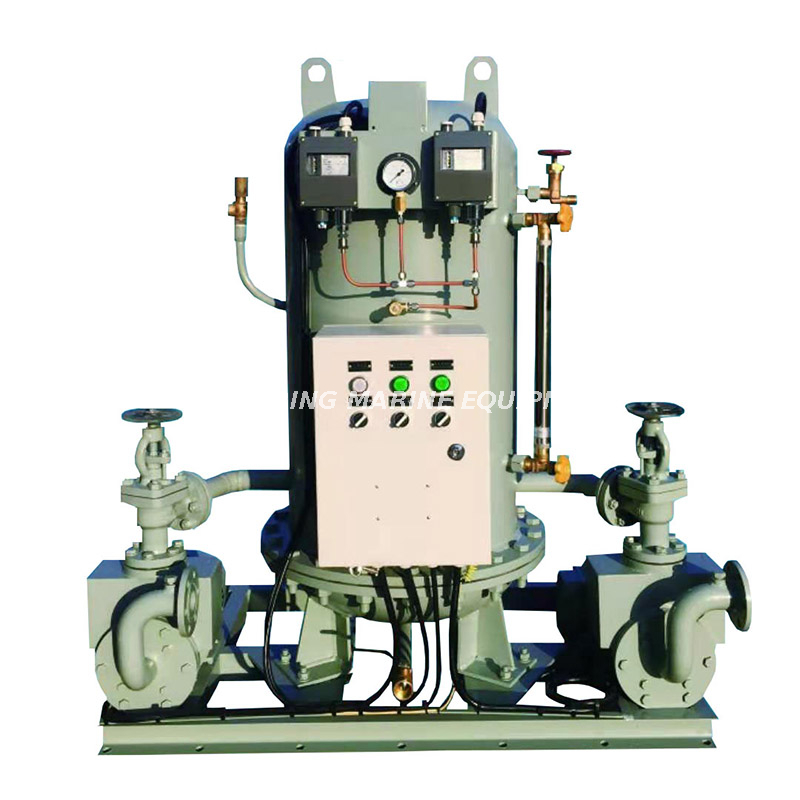

ZYG Type Pressure Water Tank Marine Hydrophore
This pressure water tank is appropriate for the water supply system (fresh water, seawater) on board.
The device uses the pressure water pumped by water pump in tank to compress air so as to keep the water in tank under a proper pressure for the use on board.
Main technical requirements
| Model | ZYG- | |||||||
| 0.12 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | ||
| Volume（m3） | 0.12 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | |
| Working pressure （MPa） | 0.4 | |||||||
| Design pressure（MPa） | 0.44 | |||||||
| Test pressure（MPa） | 0.66 | |||||||
| Take-off pressure of safety valve （MPa） | 0.42 | |||||||
| Working temperature （℃） | 0~45 | |||||||
| Design temperature （℃） | 50 | |||||||
| Water pump | Model | 1.5CWX-1.5/1.5A | 1.5CWX-2/2A | 1.5CWX-3/3A | ||||
| Flow rate（m3/h） | 3 | 6.5 | 10 | |||||
| Pumping head (m) | 40 | 40 | 40 | |||||
| Power (kW) | 2.2 | 3 | 4 | |||||
