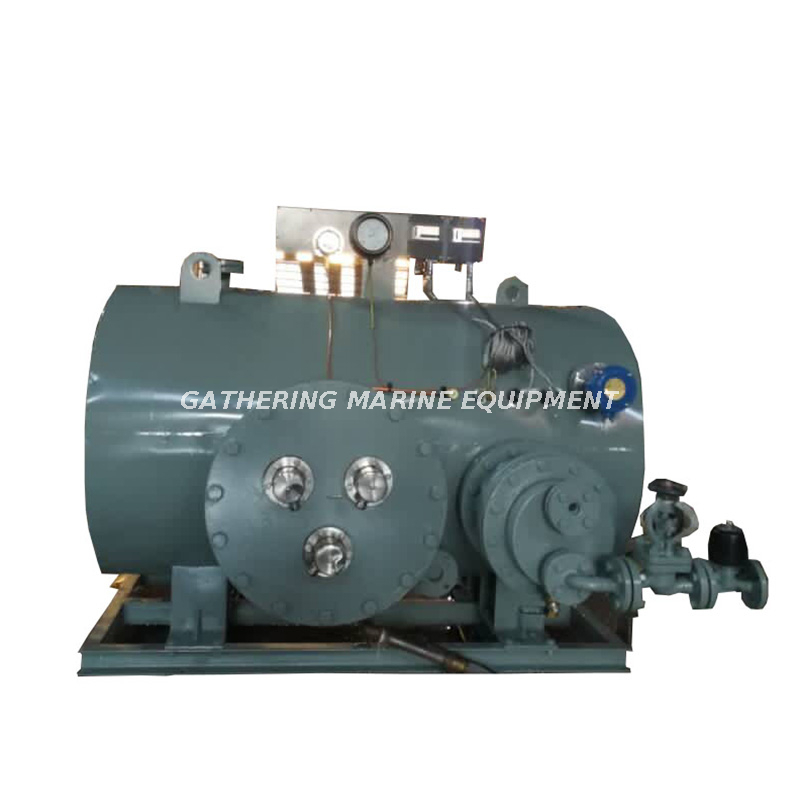

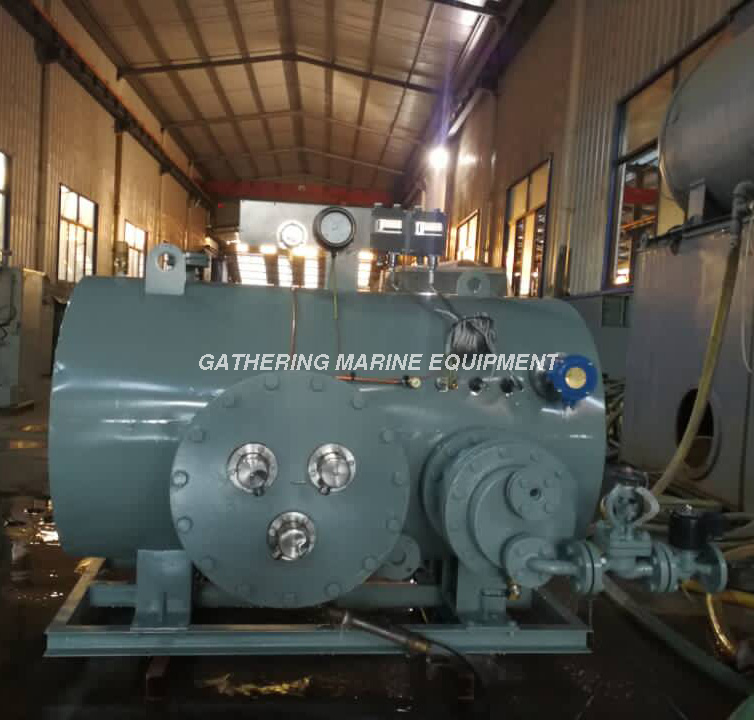

ZDR Series Steam-Electric heating hot water tank
This steam electric heating hot water tank (Calorifier) is suitable for all kinds of ship which have steam source or power to produce hot water which is used for the crewmen.
It is normally combined to use with fresh water pressure tank on board, that is to use fresh water in hydrophore tank to replenish this tank, and then heated by electric or steam heater for usage of entire vessel.
Specification of Steam electric heating hot water tank
| Type | ZDR- | |||||
| 0.12 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 | |
| Capacity(m3) | 0.12 | 0.2 | 0.3 | 0.5 | 1.0 | 1.5 |
| Working Pressure(MPa) | 0.4 | |||||
| Design Pressure(MPa) | 0.45 | |||||
| Steam Pressure(MPa) | 0.3 | |||||
| Water Inlet Temp.(℃) | 15 | |||||
| Water Outlet Temp.(℃) | 65 | |||||
| Steam consumption(kg/h) | 27.5 | 45 | 75 | 120 | 325 | 325 |
| Steam Hot-water Capacity(kg/h) | 275 | 450 | 750 | 1200 | 3250 | 3259 |
| Steam Hot-water area(m2) | 0.24 | 0.38 | 0.6 | 1 | 2.6 | 3.5 |
| Electric heating water Capacity(kg/h) | 90 | 140 | 180 | 280 | 360 | 540 |
| Electric-heating power(Kw) | 6 | 9 | 12 | 18 | 24 | 36 |
| Source | AC 380V,50Hz.3Phase AC 440V,60Hz,3phase | |||||
