Inflatable Life Raft is suitable for ships engaged on international voyages.
Throwing Overboard life raft is in accordance with SOLAS(74/96), MSC.81(70), MSC.218(82) and LSA, etc. Passed EC and CCS Certification.

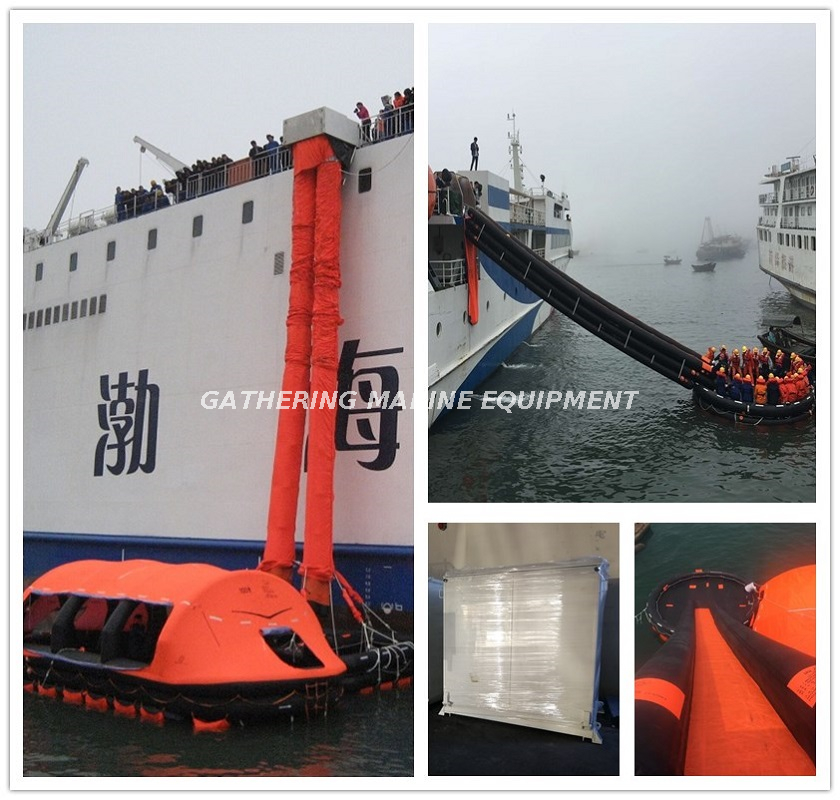

MES Marine Evacuation System
Equipment Outfit
SOLAS A Pack or B Pack
Inflation method
After throw-over from ship, the life raft can be inflated and opened automatically. If the ship sinks very fast and the life raft can not be throw-over, the liferaft still can float up from water under the action of Hydrostatic Release Unit.
Max. Storage Height
The installation height is 18-25m from water surface.
Specification of Marine Life rafts
Type | A-6 | A-8 | A-10 | A-12 | A-15 | A-16 | A-20 | A-25 | A-30 | A-35 | |
Capacity (Person) | 6 | 8 | 10 | 12 | 15 | 16 | 20 | 25 | 30 | 35 | |
Length (mm) | 2170 | 2460 | 2730 | 2990 | 3300 | 3350 | 4390 | 4770 | 5576 | 6070 | |
Width (mm) | 2170 | 2460 | 2730 | 2990 | 3300 | 3350 | 3040 | 3370 | 3275 | 3540 | |
Height (mm) | 1250 | 1300 | 1400 | 1400 | 1500 | 1500 | 1500 | 1500 | 1600 | 1700 | |
Pack | Dia(mm) | 545 | 545 | 615 | 615 | 670 | 670 | 690 | 730 | 730 | 745 |
Length(mm) | 1045 | 1045 | 1095 | 1095 | 1135 | 1135 | 1285 | 1440 | 1440 | 1485 | |
Weight (kg) (A/B Pack) | 78/60 | 90/70 | 107/80 | 122/96 | 137/98 | 142/108 | 170/120 | 185/140 | 198/150 | 220/155 |
