Open Reversible Inflatable Life Rafts

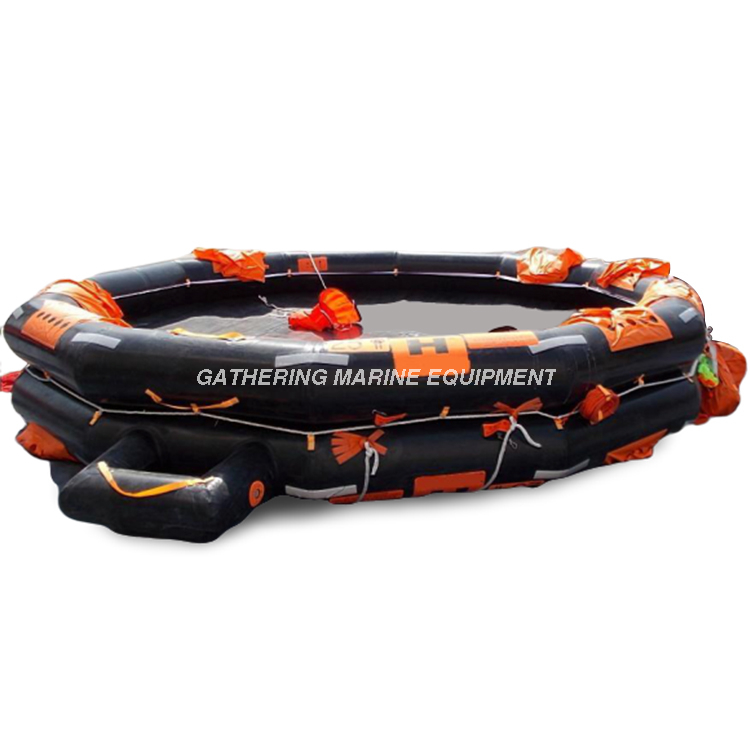

The open reversible inflatable liferaft is a floating device has no canopy,designed to be both sides are workable,suitable for short inland voyages vessels especially international high-speed ship.Open type life raft is also can be used as a MES Platform with Marine Evacuation System.
Quantity:

Open Reversible Inflatable Life Rafts
Open reversible inflatable liferaft is a floating device has no canopy,designed to be both sides are workable,suitable for short inland voyages vessels especially international high-speed ship.Open type life raft is also can be used as a MES Platform with Marine Evacuation System.

Open Type Life Raft Standard
Inflatable Life raft meets the requirements of Regulations for the Statutory Surveys of Ships and Offshore Installations “Technical Regulations for the Statutory Surveys of Sea-going Ships Engaged on International Voyages (2004)"
Both sides can be used.

Inflation method:
The life-raft can be inflated and opened automatically  after throw into the water. If the ship sinks very fast and the life-raft can not be thrown-over,the rescue raft still can float up from water under the action of Hydrostatic Release Unit  (HRU) and can be inflated and opened automatically.

Specification of Open reversible life raft

Model K-6 K10 K25 K30 K50 K65 K72 K72*2 K100 K152
Capacity
(Pers)
6 10 25 30 50 65 72 72*2 100 152
Pack
(mm)
Dia. Φ520 Φ545 Φ615 Φ615 Φ730 Φ745 Φ680 Φ792 Φ795 Φ1050
Length 1000 1045 1090 1090 1440 1485 1320 1700 1695 2050
Weight ≤ (kg) 62 67 100 117 170 185 180 360 280 385

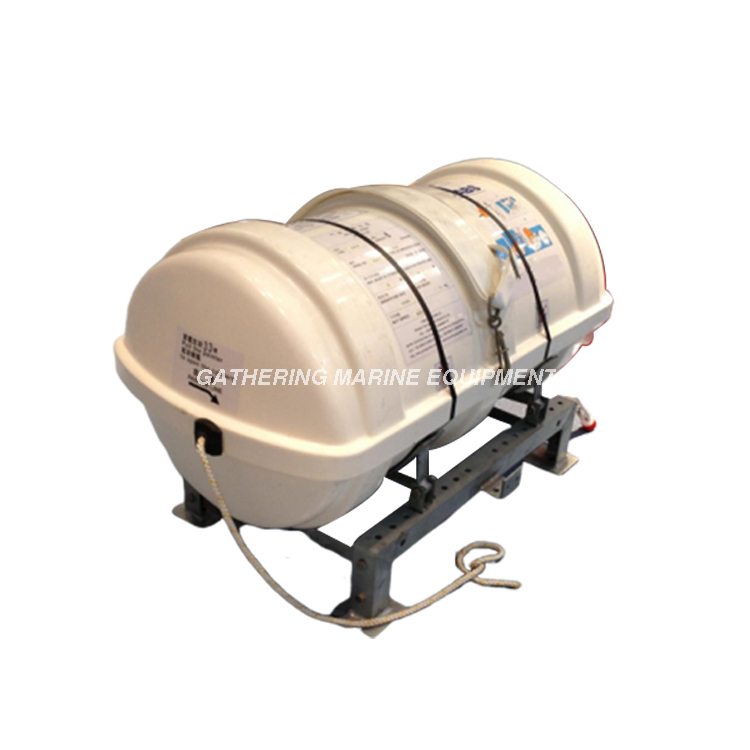

 Inflatable Life RaftLiferaft Container (15)
