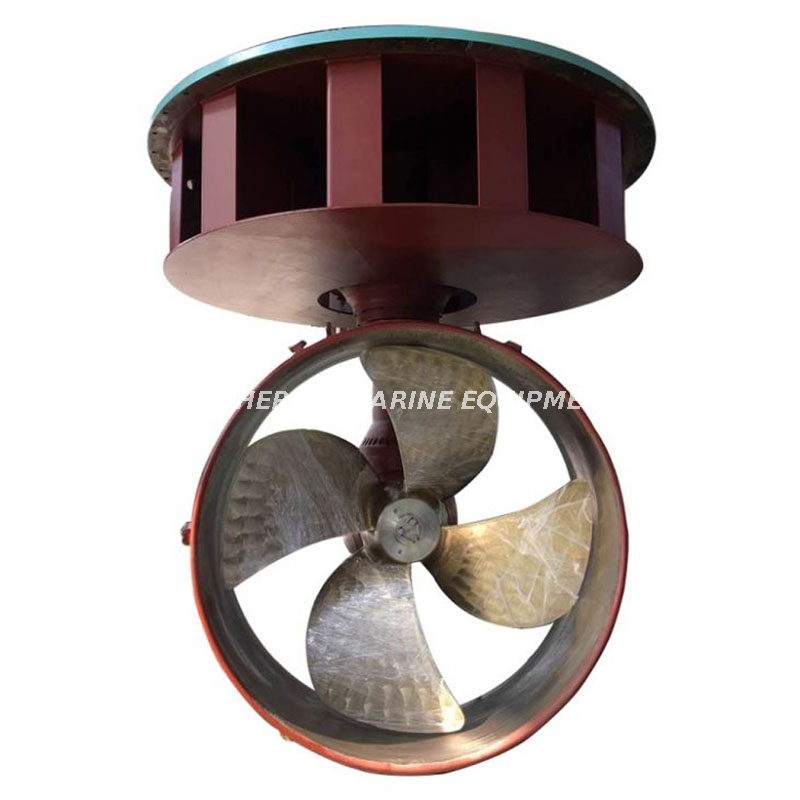

Marine Rudder Propeller Well Instalation Azimuth Thrusters

Marine Azimuth Thruster capable of rotating 360° and a side thruster to maintain the ship in a specific position and orientation. The Rudder Propeller can be operated by mechanical, electric - hydraulic unit, and can be in active service as main propulsion, auxiliary propulsion and dynamic positioning of the vessel, which are usually used in tugs, push boats, ferry boats and barges etc.
Availability:
Quantity:
Inquire Add to Basket

Marine Rudder Propeller Well Instalation Azimuth Thrusters
Marine Azimuth Thruster capable of rotating 360° and a side thruster to maintain the ship in a specific position and orientation.
The Rudder Propeller can be operated by mechanical, electric - hydraulic unit, and can be in active service as main propulsion, auxiliary propulsion and dynamic positioning of the vessel, which are usually used in tugs, push boats, ferry boats and barges etc.
Installation Type
Transom Installaiton

Well Installation
Deck Installation
Installation type
Control panel
control panel
Arrangement of Azimuth Thruster System
Drawing of the Rudder Propeller
1.Rudder propeller     2. Well box                      3.Pneumatic clutch                4.Cardan shaft
5.Buckhead sealing    6.Intermediate shaft        7.Short shaft                          8.Elastic coupling
9.Lubricate pump      10.Electric relay box         11.Steering apparatus
12.Rudder indicator   13.Emergency steering control switch
14.Emergency speed control switch                  15.Hydraulic motor
16.Hydraulic pump                                           17.Feed-back unit
Azimuth Thrusters
Technical Specification of Propulsion System


Type

Input power max.

 Input rpm [rpm]

Propeller rpm max.

Max. Dia. [mm]

Weight

[Kg]

KW

HP

No nozzle

With nozzle

No nozzle

No nozzle

SZP5A

50

68

2400 / 2200 / 2000 / 1800

1255

415

395

65

SZP5B

1500 / 1200 / 1000

78

SZP8A

80

109

2200 / 2000 / 1800 / 1600

955

525

500

115

SZP8B

1500 / 1200 / 1000 / 900

138

SZP12A

120

163

2200 / 2000 / 1800 / 1600

970

645

610

190

SZP12B

1500 / 1200 / 1000 / 900

228

SZP16A

160

218

2200 / 2000 / 1800 / 1600

795

840

745

705

520

SZP16B

1500 / 1200 / 1000 / 900

620

SZP20A

200

272

2000 / 1800 / 1600 / 1500

715

750

830

790

840

SZP20B

1200 / 1000 / 900 / 800

1080

SZP25A

250

340

2000 / 1800 / 1600 / 1500

632

670

930

885

1170

SZP25B

1200 / 1000 / 900 / 800

1405

SZP30A

300

408

2000 / 1800 / 1600 / 1500

580

610

1020

970

1370

SZP30B

1200 / 1000 / 900 / 800

1645

SZP35A

350

476

2000 / 1800 / 1600 / 1500

540

5265

1100

1045

1735

SZP35B

1200 / 1000 / 900 / 800

2082

SZP40A

400

544

1800 / 1500 / 1200

505

530

1175

1120

2100

SZP40B

1000 / 900 / 825 / 750 / 600

2520

SZP50A

500

680

1800 / 1500 / 1200

450

475

1315

1250

2500

SZP50B

1000 / 900 / 825 / 750 / 600

2750

SZP60A

600

816

1800 / 1600 / 1500 / 1200

410

430

1440

1370

2800

SZP60B

1000 / 900 / 825 / 750 / 600

3080

SZP75A

750

1020

1800 / 1600 / 1500 / 1200

370

385

1610

1530

4500

SZP75B

1000 / 900 / 825 / 750 / 600

4950

SZP90A

900

1224

1800 / 1600 / 1500 / 1200

335

355

1765

1675

6000

SZP90B

1000 / 900 / 825 / 750 / 600

6600

SZP110A

1105

1503

1800 / 1600 / 1500 / 1200

305

320

1955

1860

7000

SZP110B

1000 / 900 / 825 / 750 / 600

7700

SZP130A

1325

1802

1800 / 1600 / 1500 / 1200

275

290

2140

2035

18000

SZP130B

1000 / 900 / 825 / 750 / 600

SZP150A

1500

2040

1800 / 1600 / 1500 / 1200

260

275

2280

2165

20000

SZP150B

1000 / 900 / 825 / 750 / 600

SZP170A

1765

2400

1600 / 1500 / 1200 / 1000

240

250

2470

2350

22000

SZP170B

900 / 825 / 750 / 550

SZP190A

1912

2600

1600 / 1500 / 1200 / 1000

230

240

2570

2445

24000

SZP190B

900 / 825 / 750 / 550

SZP220A

2206

3000

1600 / 1500 / 1200 / 1000

215

225

2760

2625

28000

SZP220B

900 / 825 / 750 / 550

SZP260A

2600

3536

1600 / 1500 / 1200 / 1000

180

213

3400

3000

41000

SZP260B

900 / 825 / 750 / 550

SZP300A

3000

4080

1600 / 1500 / 1200 / 1000

185

195

3220

3060

53000

SZP300B

900 / 825 / 750 / 550


Power transmission of the propulsion device depends on max input torque of the device. Propulsion application type, prime mover type and vessel type affect actual input torque. Please kindly contact our technical engineer for propulsion type selection.
Rated input torque MP of prime mover(diesel, electric motor or hydraulic motor) is important technical date for propulsion type selection. Calculation formula is as below:
Mp≤ Sf * MR
Mp = N * 9549 / n
Sf = fz * fl * fs

Marks:
Mp(Nm): Output torque of prime mover
Sf: Rudder propeller service factors
Mr(Nm): Max input torque of rudder propeller
N(KW): Output power of prime mever
n(r/min): Input speed of rudder propeller

The desing torque can't be taken as the basis for propulsion type selection according to our experience.
Different operation conditions must be taken into consideration. Common safety coefficient Sf of torque design can be based on the following:
Sf=0.75: Full power continuous rating 24 hours service(Container ships, push tugs)
Sf=0.9: Intermettent service with eventual full load( harbor tugs, floating crane)
Sf=1.0: Auxilliray installations(Tunnel thruster, DP-installations)

Safety coefficient Sf of propulsion device should meet the classification navigation specification. Sf should be between 0.33-0.67 for those with ice class requirement. For those with special installation request please contact our technical engineer for type selection.
