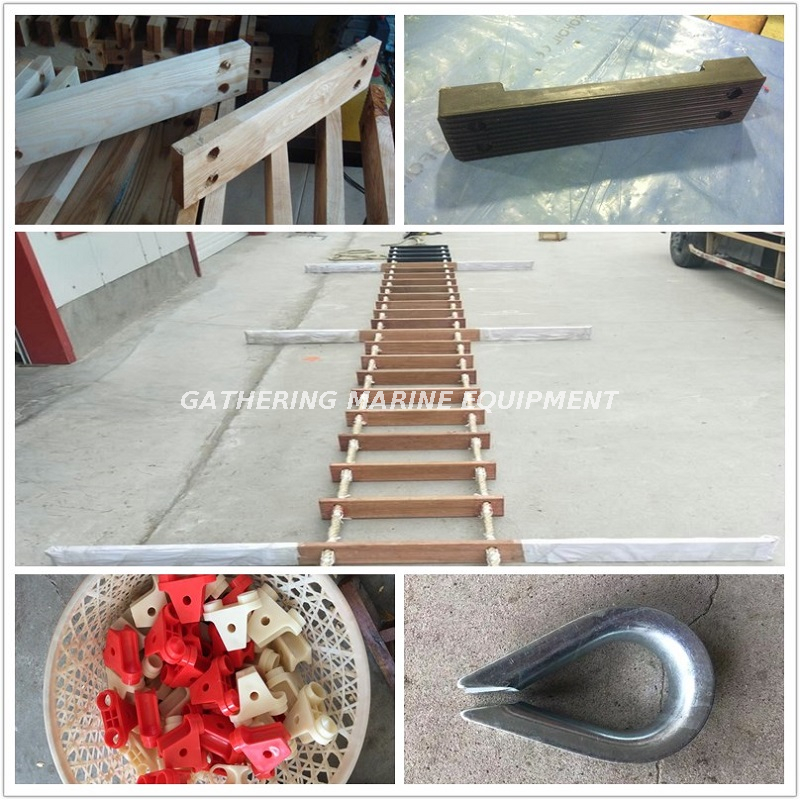

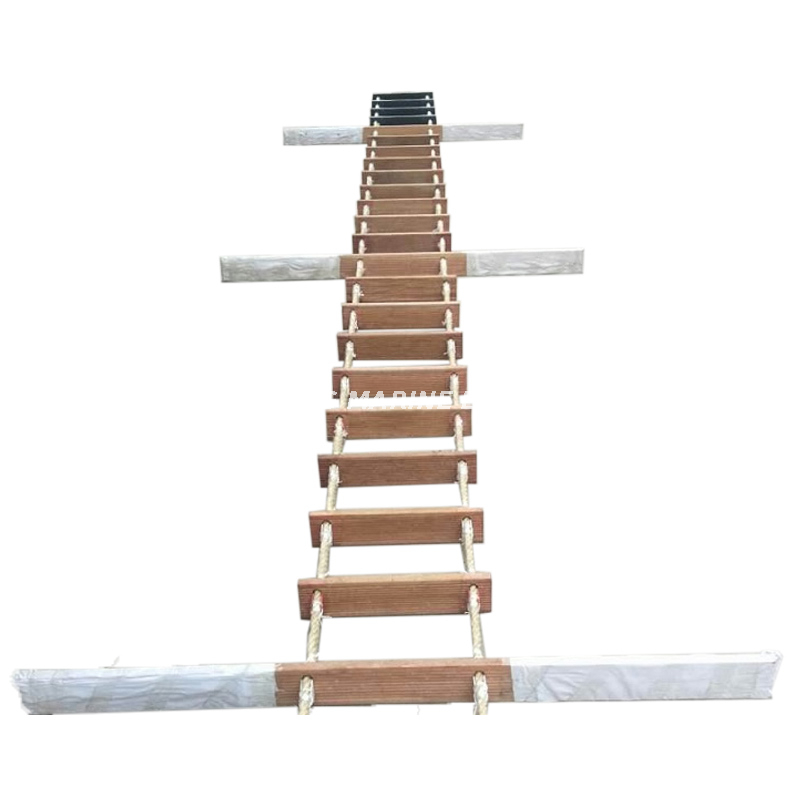

Marine Pilot Ladders SOLAS Pilot Ladder on Ships
Marine Pilot's Rope Ladder is one type of rope ladder, usually made by hard wood and typically used on board of vessels for the embarking and disembarking pilots.The design and construction of the Rope ladder is comply with SOLAS regulation.With spreaders step(Preventer Step) and magnet, pilot ladder could work safety under kinds of sea conditions.
Standards
1.ISO799:2004 Ships and Marine technology,Pilot Ladder
2.MSC.308(88) The International Life-Saving Appliance
3.Comply with SOLAS 1974 and latest amendment.
4.IMO A.1045(27) Pilot transfer arrangements
Main Data of Pilot Rope Ladder
Pedal Material: Willow
The bottom four steps:Rubber
Short board size:525*115*28mm
Long board size:1800*115*28mm
Certification:EC&CCS
Name | Size (mm) | Orifice | Material | |
Short Board | Long Board | |||
Pilot Ladder | 525*115*28 (flat board) | 1800*115*28 | 25mm Or 2mm
| willow |
525*115*(30~38) 525*115*(30~60) (slotting board) | ||||
Embarkation Ladder | 525*115*28 (flat board) |
| ||
Embarkation Ladder
