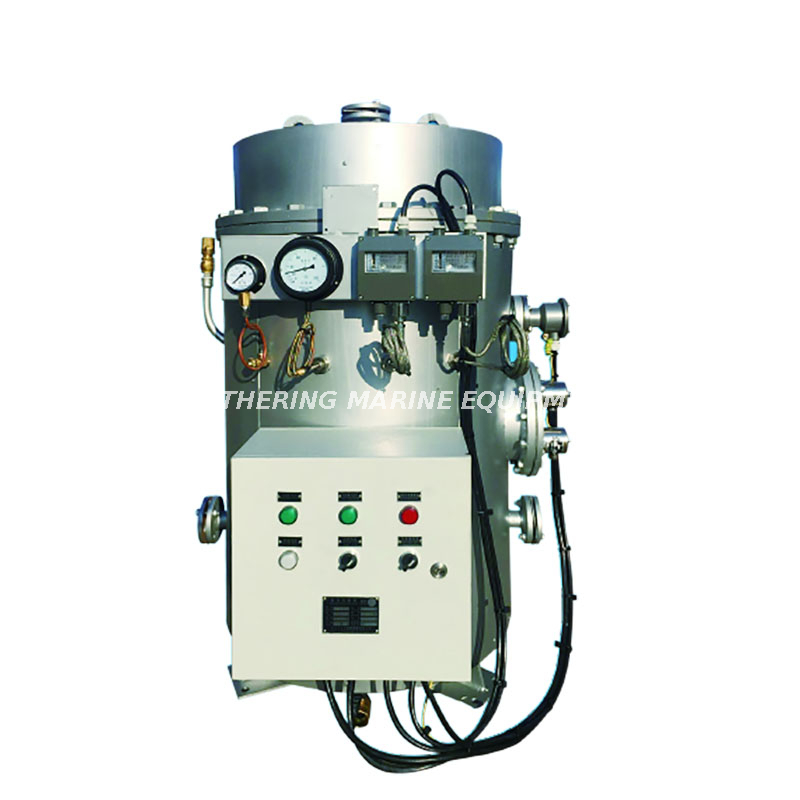

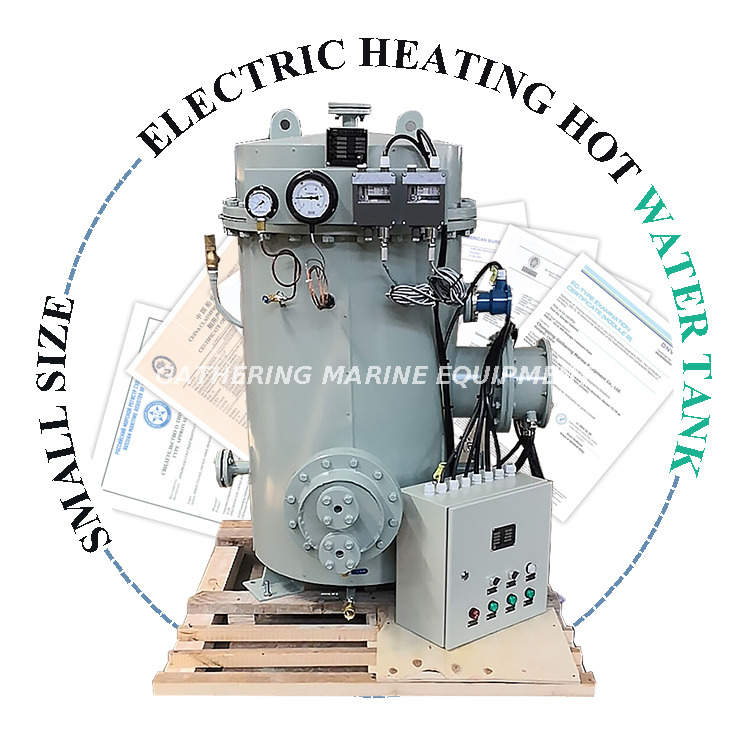

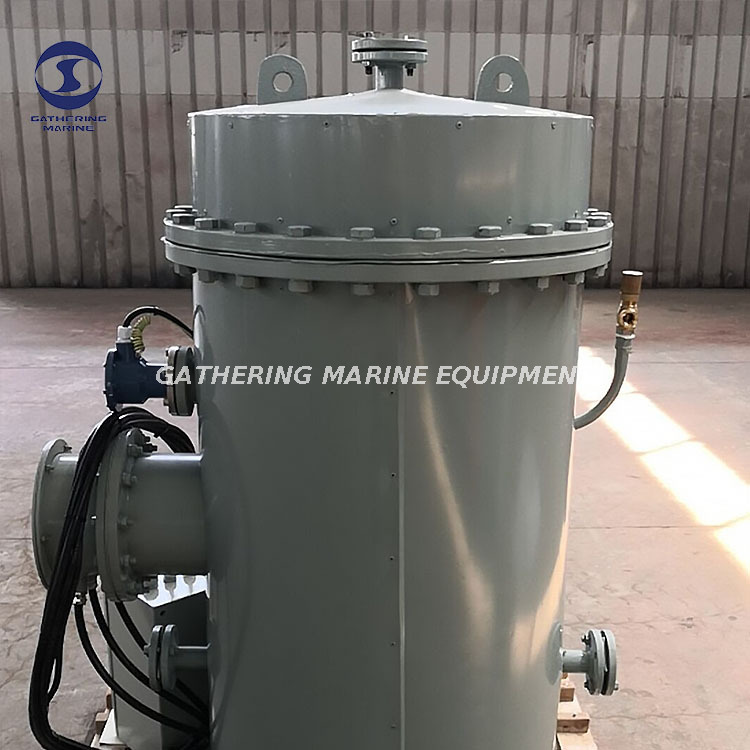

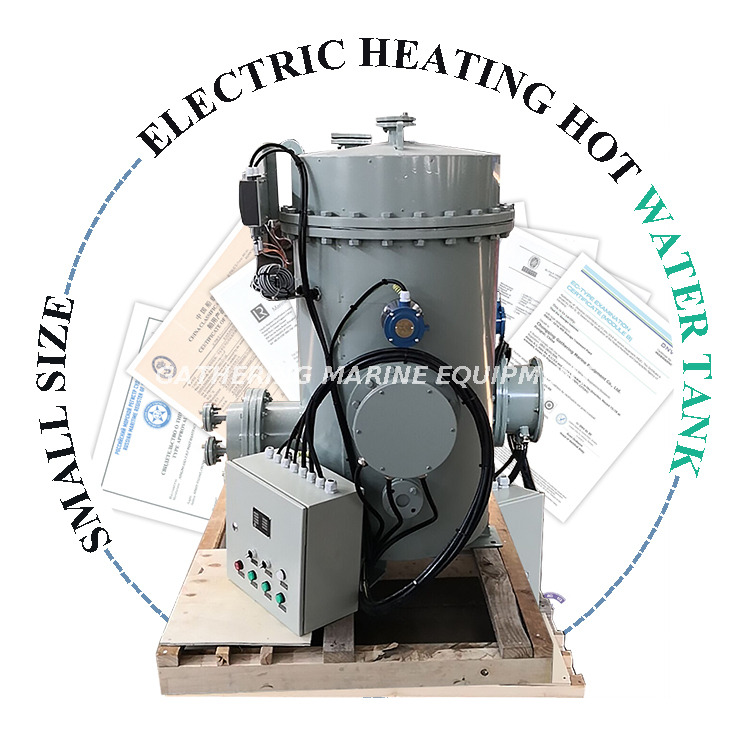

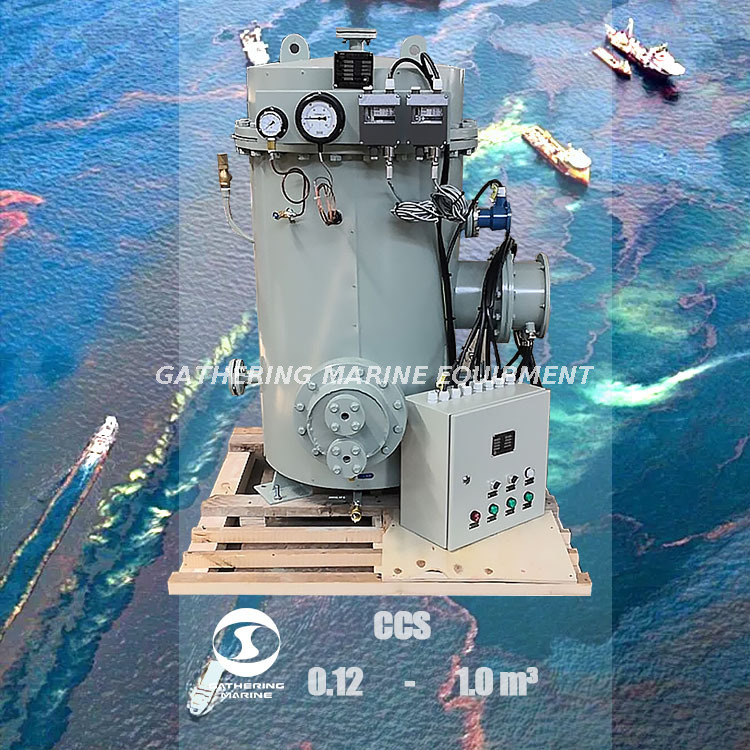

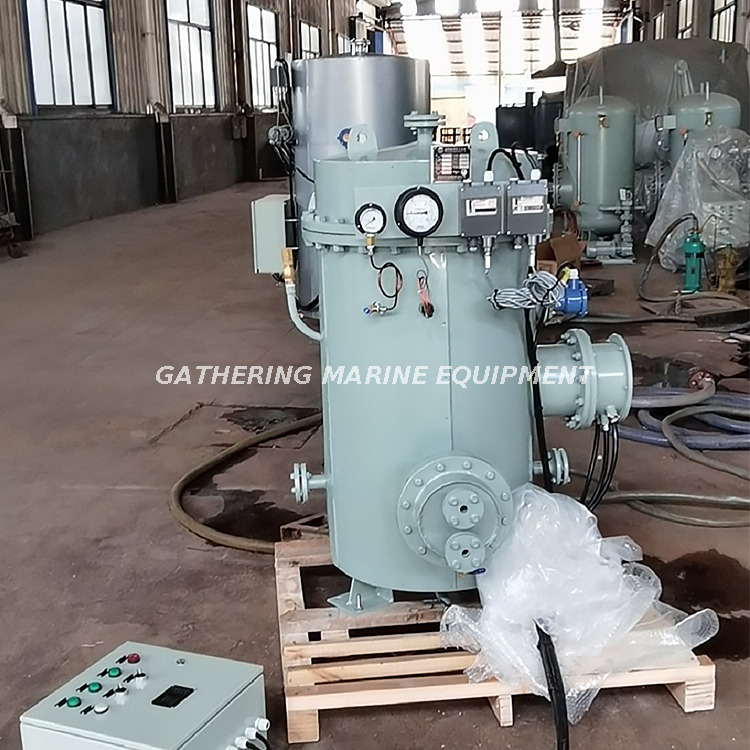

Electric Heating Hot Water Tank Electric Calorifier
Electric Heating Water Calorifiers are designed to be used with electricity as the energy heating input,it is suitable for heating fresh water on all the types of vessels or platform, heated hot fresh water is available for crews.
Main Technical Parameters of Electric Calorifier
| Model | DRG- | ||||
| 0.12 | 0.2 | 0.3 | 0.5 | 1.0 | |
| Capacity （m3） | 0.12 | 0.2 | 0.3 | 0.5 | 1.0 |
| Working pressure （MPa） | 0.4（60℃） | ||||
| Design pressure （MPa） | 0.44 | ||||
| Test pressure （MPa） | 0.66 | ||||
| Safety valve open pressure （MPa） | 0.42 | ||||
| Water inlet temperature （℃） | 15 | ||||
| Water outlet temperature （℃） | 65 | ||||
| Working temperature （℃） | 0~65 | ||||
| Design temperature （℃） | 80 | ||||
| Heated water capacity （kg/h） | 180 | 360 | 540 | 720 | 900 |
| Electrical heating power （kW） | 12 | 24 | 36 | 48 | 60 |
| The thickness of outer galvanized sheet steel （mm） | 0.7 | ||||
| Electricity | AC380 50Hz 3ph/AC440V 60Hz 3ph | ||||
Interfaces of electric heating calorifier
| Model | Cold water inlet | Hot water outlet | Water return interface | Discharging outlet |
| DRG-0.12 | DN25 | DN25 | DN25 | 3/4" |
| DRG-0.2 | DN25 | DN25 | DN25 | 3/4" |
| DRG-0.3 | DN32 | DN32 | DN32 | 3/4" |
| DRG-0.5 | DN32 | DN32 | DN32 | 1" |
| DRG-1.0 | DN40 | DN40 | DN32 | 1" |
