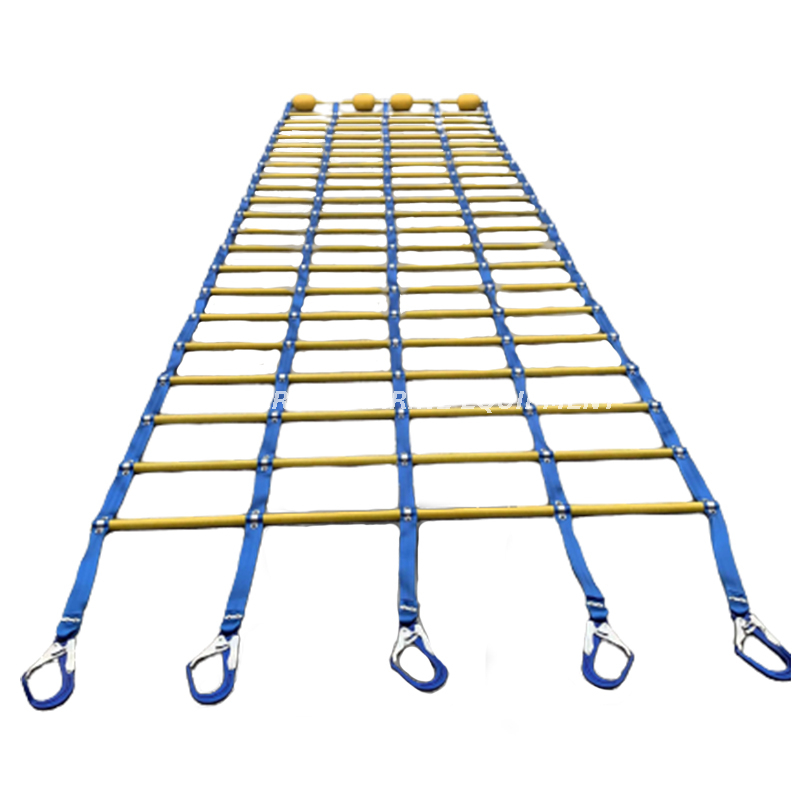

Marine Rescue Net
1.The Description of the Marine Rescue Net
Marine rescue net, climbing net is mainly used for marine emergency rescue in water area. We accept customized service of the size and type of rescue net.
1.Epoxy rods with a diameter of 30mm for the horizontal direction. The surface coating has a strong and anti-slip function.
2.The vertical connection is made of high-strength and wear-resistant 50mm polyester braided belt. The connecting part is assembled by high quality stainless steel parts.
3.The upper part has 3 stainless steel grappling hooks with locks to lock the ship's side.
4.Both of the cross bar has round floats. They are enough to prevent the net from being close to the ship's side surface in the suspended state.
5.The tail belt is with the same length as the net is equipped with a stainless steel ring to facilitate hand pulling.
6.The overall design is implemented in according to the standards of the British maritime rescue ship in UKOOA.
7.The horizontal boarding rod of the net is made of composite fiber material with a strong anti-skid surface coating.
It's convenient for boarding for the people in the water.
8.There are multiple wear-resistant strips in the vertical direction. Saturated latex webbing connection, breaking strength not less than 10KN and the middle of the horizontal net is equipped with soft gauge rollers. So then the net is not close to the ship's side, which is convenient for hands and feet to grasp.
9.The overall load-bearing capacity is more than 2000kg.
2.The Technical Specifications of the Marine Rescue Net
Product Name | Marine Rescue Net |
Application | Emergency Rescue Climbing Equipment for Marine Ships |
Material | Polyester Braided Belt,Aluminum Tube |
Accessories | Epoxy Rods, Aluminum Tubes, Float Buoys |
Braided Rope Diameter | 30mm |
Features | High-strength, wear resistant |
Load Capacity | 2000kg |
Size | Customized according to the customer's requriements |

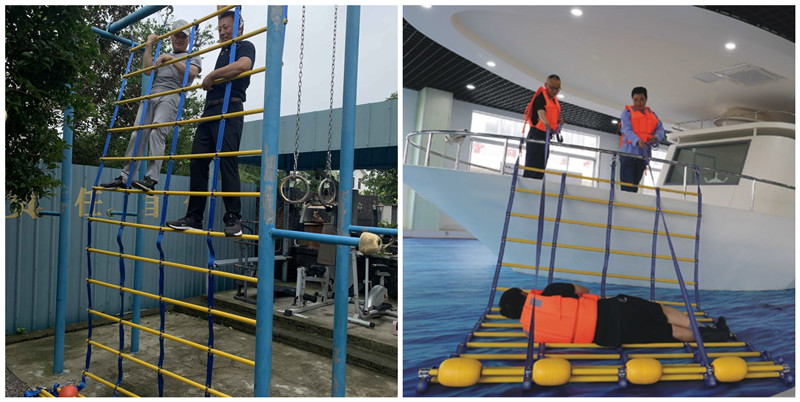

3.Details Images
