CO2 Fire Extinguishing System
Marine CO2 Fire Extinguishing Plant with CCS/BV
Approval Standard:
Marine Pofessiona Standard, Marine Carbon Dioxide Fire Eingishing Plant, CB/T3294-1989
Martine Satety Administration of the P.R.C, Technical Regulations tor the Statutory Surveys of1 Inland Water-ways Ships (2011)，
CCS-"Rules for the Classification of Sea- Going Steel Ship 2018"
ISO 15371-2015 Ships and Marine Technology--Fire- extinguishing Systems tor Protection of Gally CookingEquipment.
IMO MSC.206(81) Amendments to the international code for fire safety systems (fss code) chapter 5.
Taxonomy

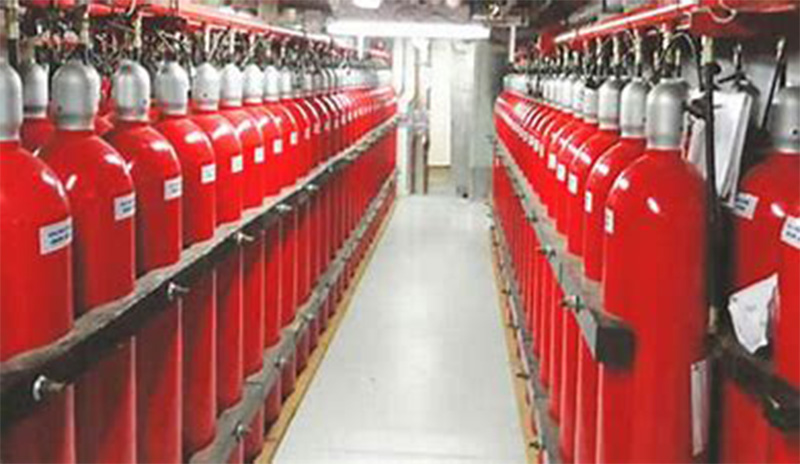

System for machinery spaces

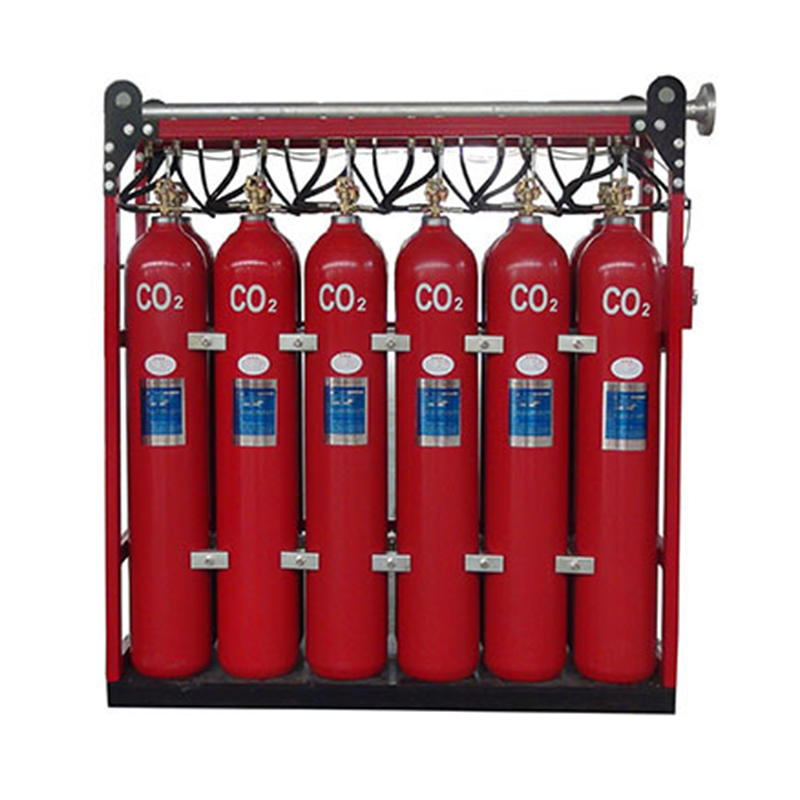

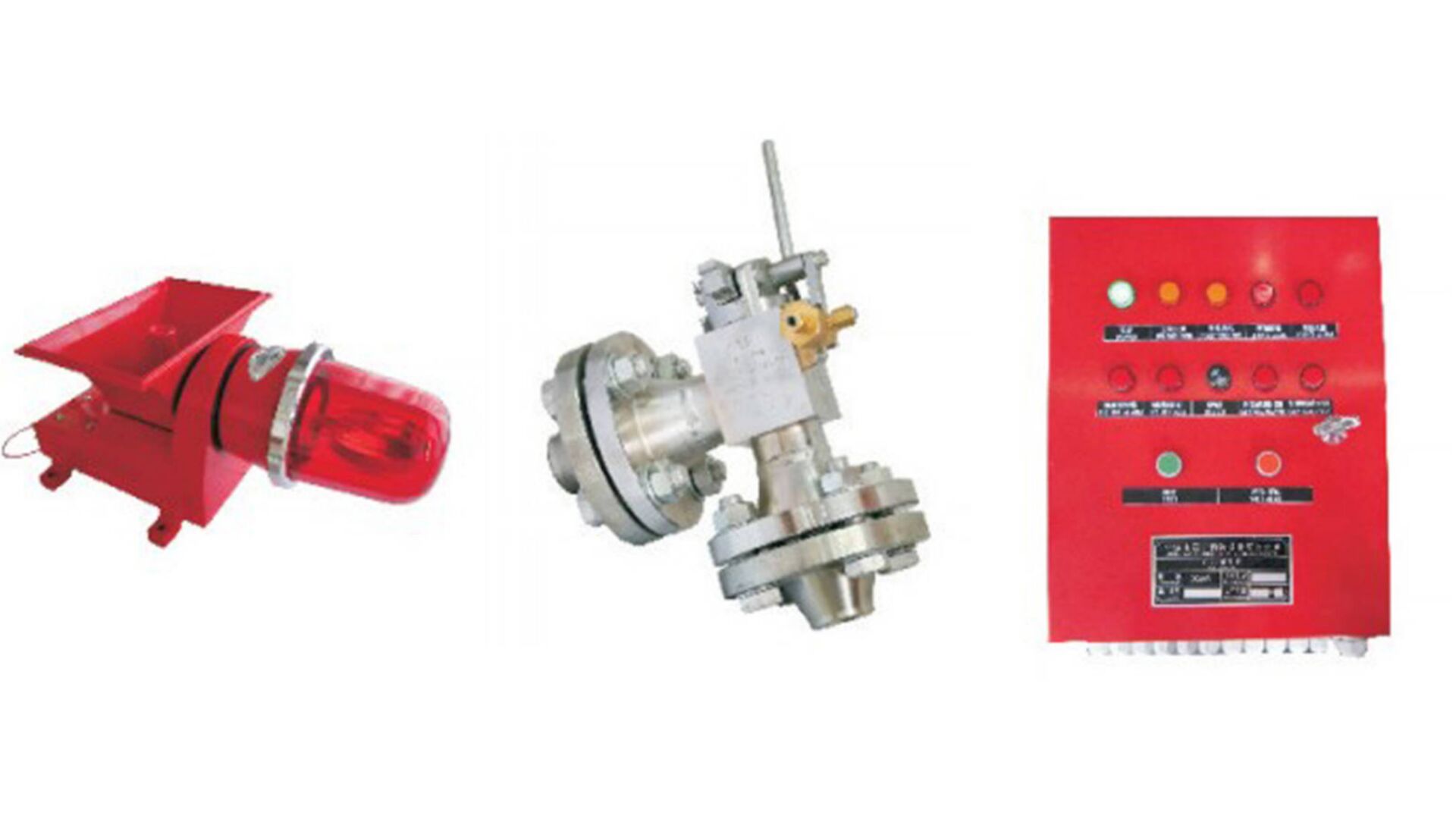

System for machinery spaces mainly consists of cylinder unit,pneumatic selection valve,nozzles,pipeline,etc.
The system remotely controlled through remote control station. There is alarm before and during the release of CO2.

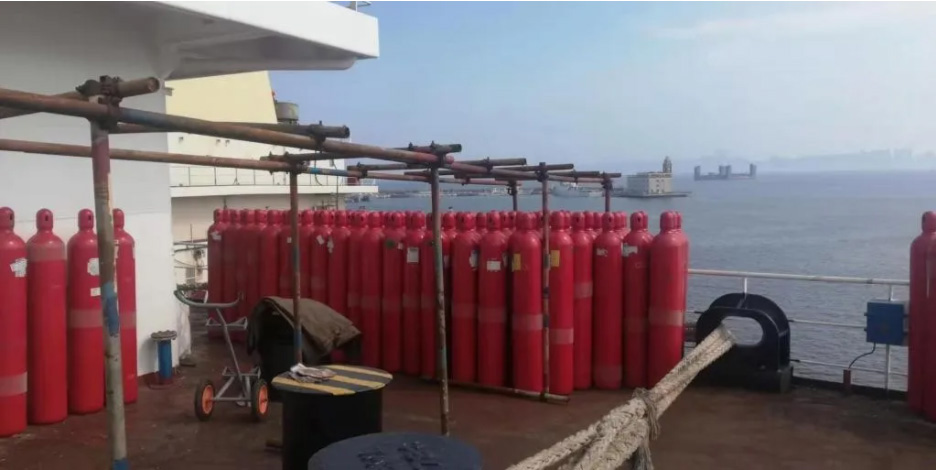

System for cargo holds
System for cargo holds consists of cylinder unit(sectioned by protection volume), tee valve unit, and nozzle incargo holds. The system is started by manually turning tee valve, then open head valve, and release CO2extinguish the fire.
Marine CO2 Fire Protection Plant Technical Parameter
Model | YN-68/40/20/12/10/8;YNN-68/40/20/12/10/8 | |
Class | Fixed | |
Nominal pressure | 14.7MPa | |
Cylinder volume | CO2cylinder | 8L、10L、12L、20L、40L、68L |
N2 cylinder | 4L | |
CO2 filling rate | ≤0.67Kg/L | |
Environment condition | Temperature | -10℃+50℃ |
Humidity | 93±3% | |
Electricity supply | main supply | AC220V 50HZ/440V 60HZ |
Auxiliary supply | DC24V 3A | |
power | Standby | ≤30W |
Working | 200W | |
Operation method | Manual | |
Pneumatic | Remote control | |
Manual | Local operation | |
Release delay | Machanical delay | 20-40S |
Star up air source | Gas type |
|
Filling Pressure | 5.9MPa | |
