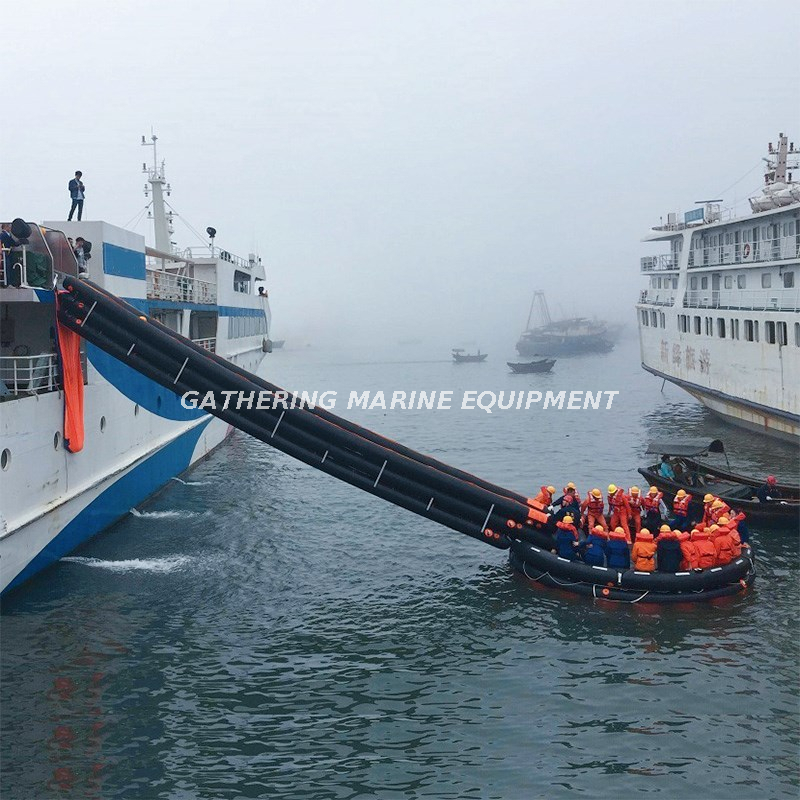

Inclined Type Single Passage Chute Marine Evacuation System
Marine Evacuation System is stowed in the stainless steel container on the deck. When releasing the handle, the MES will be formed into the Water automatically.
MES provide fast and easy evauation, exeptional stability and are regard as the best means of surval by the crew.
Specification of MES
| Type | Model | Max. Stowage Height (m) | Capacity Of Evacuation (P) | Capacity Of Platform (P) | Weight (kg) | Container size (mm) |
| Vertical MES | MES-S | 25 | 330 | 50 | 1900 | 1200*1850*2500 |
| MES-D | 25 | 560~660 | 75/100 | 2600 | 1200*2600*2500 | |
| Inclined MES | MES-I | 12 | 350 | 50 | 1300 | 1870*1300*1948 |
| MES-II | 12 | 700 | 100 | 1800 | 2370*1680*2000 |

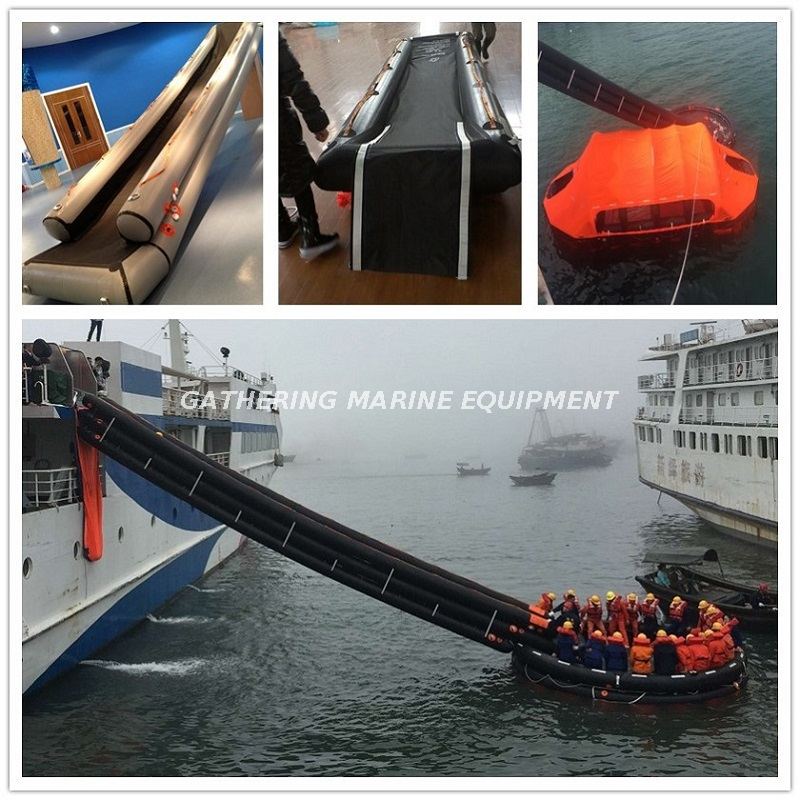

Inclined type Single Chute Evacuation System

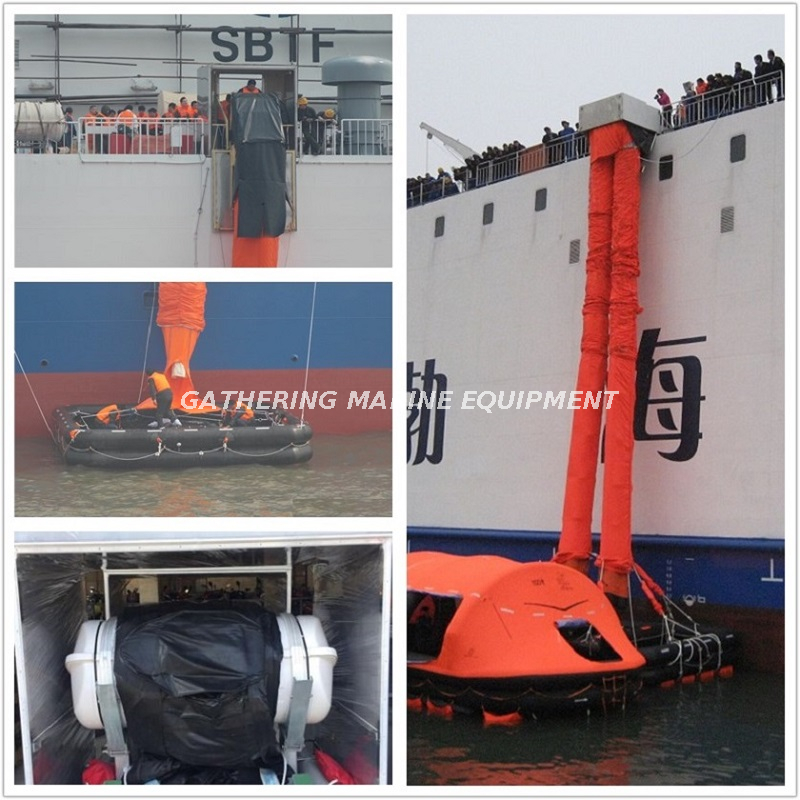

Vertical type Single Chute Evacuation System
Inclined Type Single Passage Chute Marine Evacuation System
Marine Evacuation System is stowed in the stainless steel container on the deck. When releasing the handle, the MES will be formed into the Water automatically.
MES provide fast and easy evauation, exeptional stability and are regard as the best means of surval by the crew.
Specification of MES
| Type | Model | Max. Stowage Height (m) | Capacity Of Evacuation (P) | Capacity Of Platform (P) | Weight (kg) | Container size (mm) |
| Vertical MES | MES-S | 25 | 330 | 50 | 1900 | 1200*1850*2500 |
| MES-D | 25 | 560~660 | 75/100 | 2600 | 1200*2600*2500 | |
| Inclined MES | MES-I | 12 | 350 | 50 | 1300 | 1870*1300*1948 |
| MES-II | 12 | 700 | 100 | 1800 | 2370*1680*2000 |
Inclined type Single Chute Evacuation System
Vertical type Single Chute Evacuation System
