Fire Fighting Equipment Foam Mixture Device Foam Proportioner

Proportional mixer Venturi, the pressure pressure water passes through the proportional proportional mixer, in its internal internal foam foam liquid liquid liquid storage tank storage tank storage tank produces negative and negative pressure difference pressure pressure difference mixer, in There is an orifice plate in the connecting pipe to control the flow of the foam liquid, so that the foam with a stable mixing ratio is formed
Availability:
Quantity:
  • Proportioner

Fire Fighting Equipment Foam Mixture Device Foam Proportioner

The proportioning mixer is a device for absorbing and transporting foam liquid in foam fire extinguishing system. The foam systemisinstalled in the foam system of the fire truck or fire pump group. According to the different mixing volume requirements of the foamproduction and injection equipment, the foam liquid is absorbed proportionally, and sent to the fire pump inlet pipe to be mixed with ,water to form a mixed liquid, and then the mixture is sent to the foam generation and injection equipment through the fire pump.

Balanced Pressure Foam Preportioner

Models

Flow capacity

Pressure lost

Ratio of mix liquid

SS20/50-PP

120-850

0.13-0.94

1-6%

SS20/80-PP

300-2200

0.13-0.97

1-6%

SS50/100-PP

SS50/150-PP

800-5000

1400-9900

0.14-0.9

0.13-0.93

1-6%

1-6%

SS 80/200-PP

2800-21300

0.12-0.89

1-6%

SS 80/250-PP

5000-33400

0.14-0.90

1-6%

SS 80/300-PP

6400-42100

0.14-0.93

1-6%

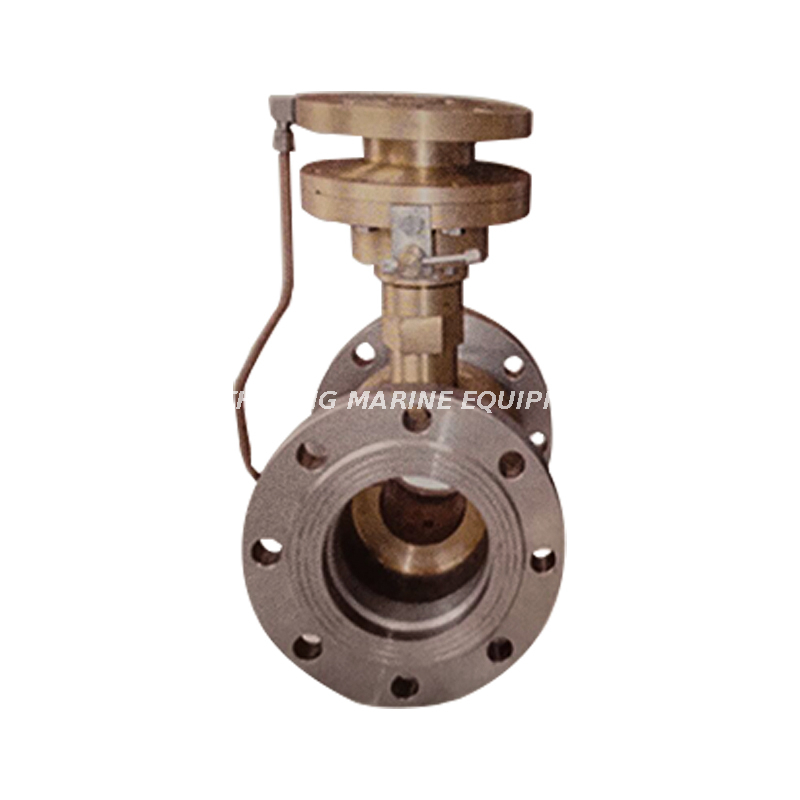

marine proportioner

Round The Pump Foam Proportioner

Models

Inlet flange

Flow capacity(L/min)

Pressure lost(bar)

Ratio of mix liquid

PH24

DN50

1440

0.0011×L/min

1-6%

PH32

DN50

1920

0.0011×L/min

1-6%

PH40

DN80

2400

0.00044×L/min

1-6%

PH48

DN80

2880

0.00044×L/min

1-6%

PH64

DN80

3840

0.00044×L/min

1-6%

PH80

DN100

4800

0.00018×L/min

1-6%

PH100

DN100

6000

0.00018×L/min

1-6%

PH120

DN150

7200

0.000094×L/min

1-6%

PH150

DN150

9000

0.000094×L/min

1-6%

PH180

DN150

10800

0.000094×L/min

1-6%

PH200

DN150

12000

0.000094×L/min

1-6%

PH400

DN200

24000

0.000042×L/min

1-6%

PH500

DN250

30000

0.000027×L/min

1-6%

PH700

DN300

42000

0.000022×L/min

1-6%

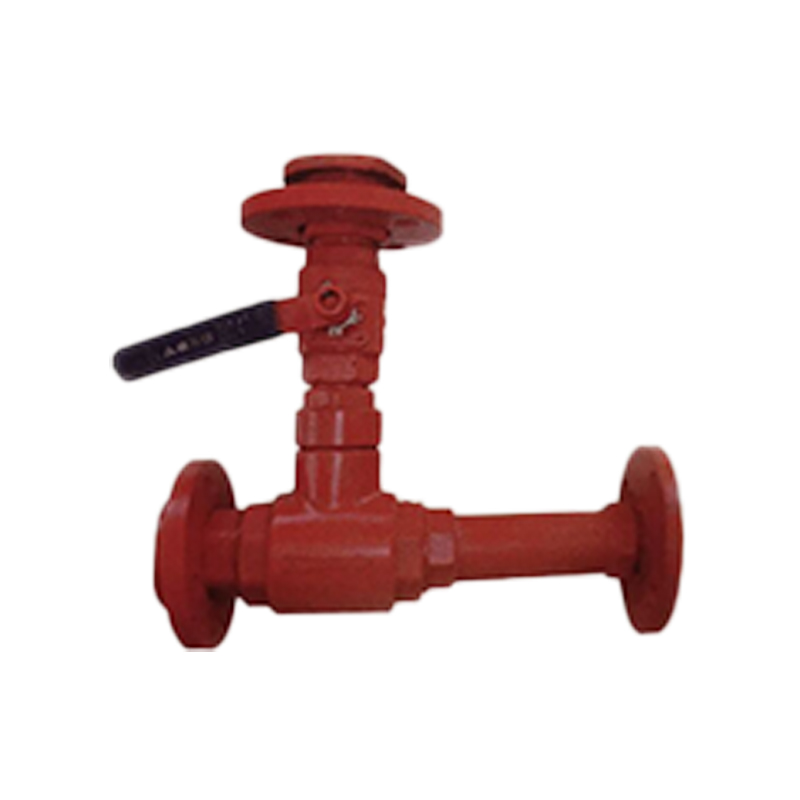

high pressure prportioner
