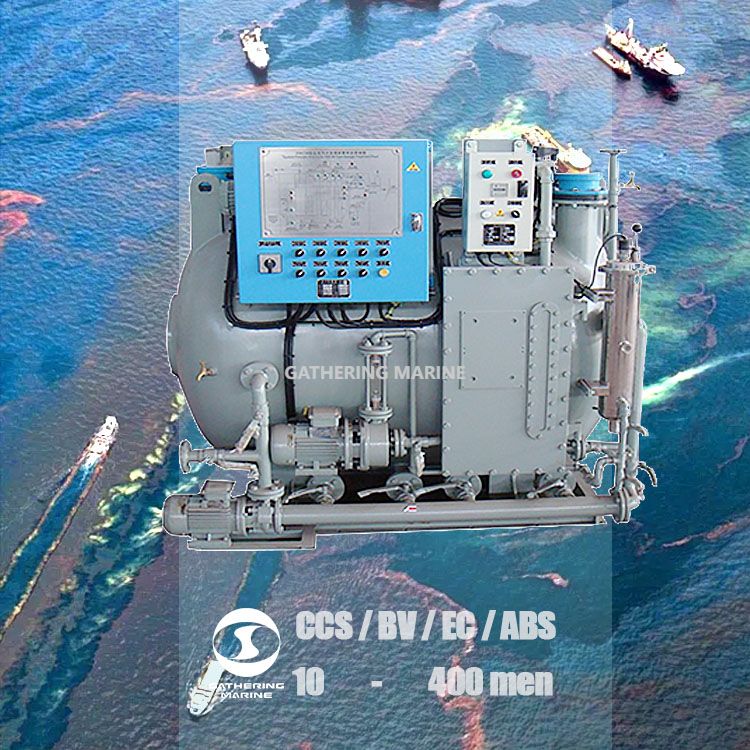

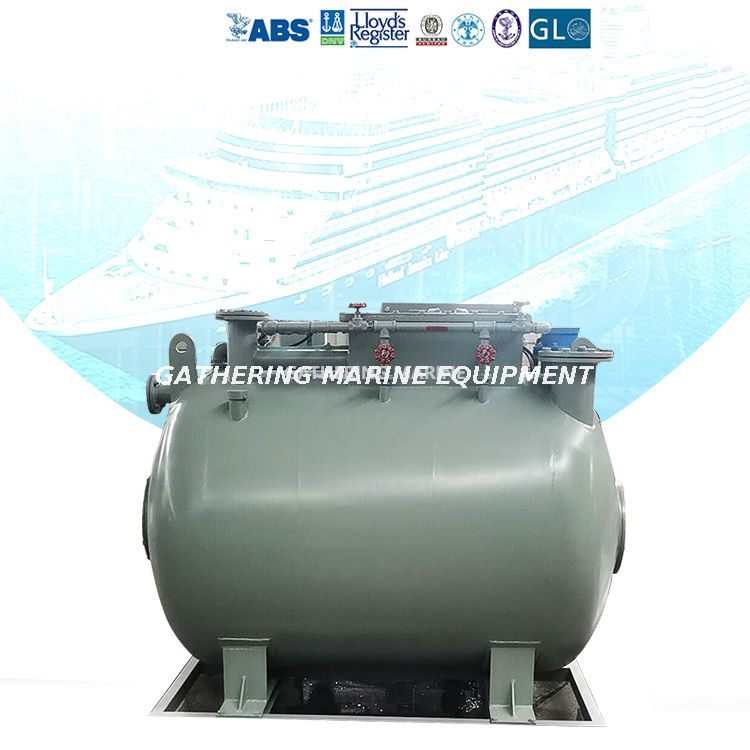

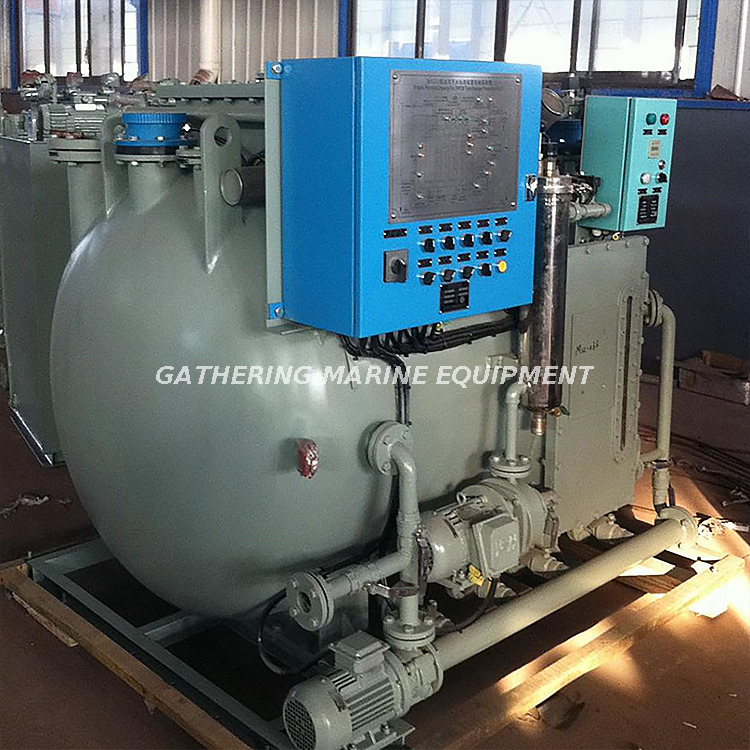

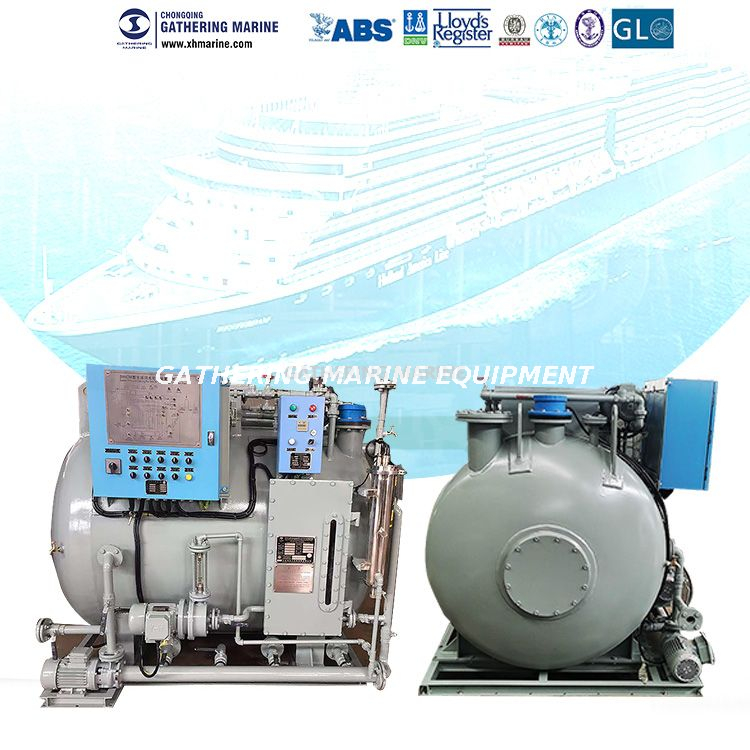

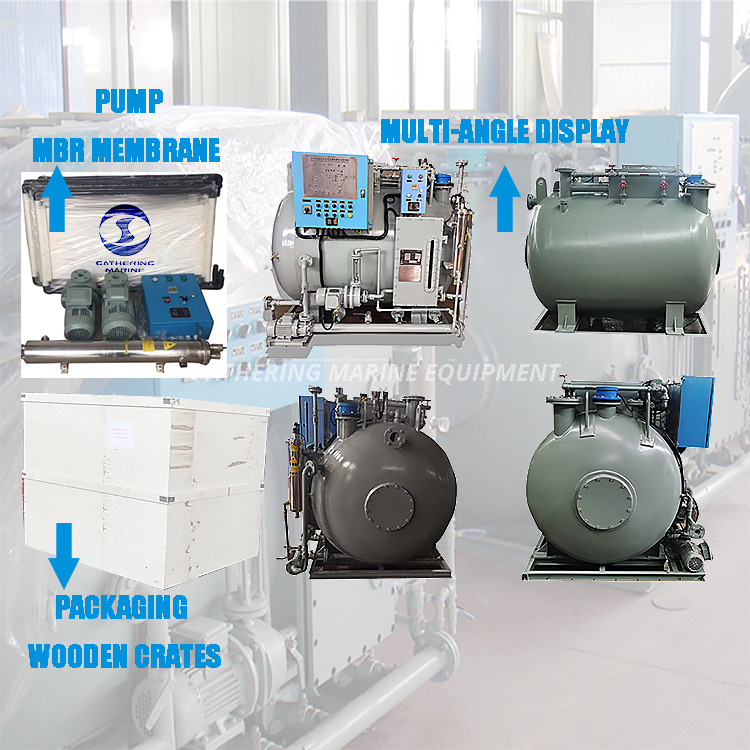

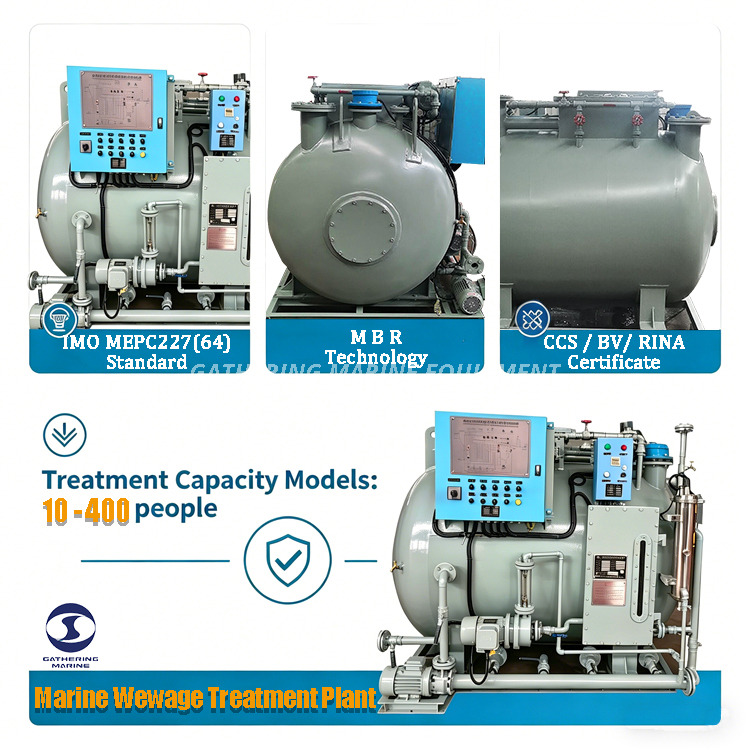

Automatically Controlled Black Water And Grey Water Purification Device for Small Ships

Marine domestic sewage treatment device MBR is a marine membrane bioreactor (Membrane Bio-Reactor), which is a highly efficient sewage treatment process that combines membrane separation technology with biological treatment technology. Its principle is to use the microorganisms in the activated sludge to decompose and metabolize the organic matter in the sewage, and at the same time, through the efficient separation of the membrane components, the activated sludge and the treated water are separated into solid and liquid, thereby achieving the purification of domestic sewage.
Availability:
Quantity:
  • Marine sewage treatment plant

Sewage Treatment44-2

Sewage Treatment44-3


New standard



IMO.MEPC.159(55)
IMO.MEPC.227(64)
TSS (mg/l)
35
≯35Qi/Qe
BOD5 (mg/l)
25
≯25Qi/Qe
COD (mg/l)
125
≯125Qi/Qe
Escherichia coli (piece/100ml)
100
100
PH
6~8.5
6~8.5
Residual chlorine (mg/l)
<0.5
<0.5
Ammonia nitrogen
NR
NR
Total nitrogen
NR
20mg/l Qi/Qe mg/l or at least 70% reduction rate
Total phosphorus
NR
1.0mg/l Qi/Qe mg/l or at least 80% reduction rate
Our products can meet the above core standards.

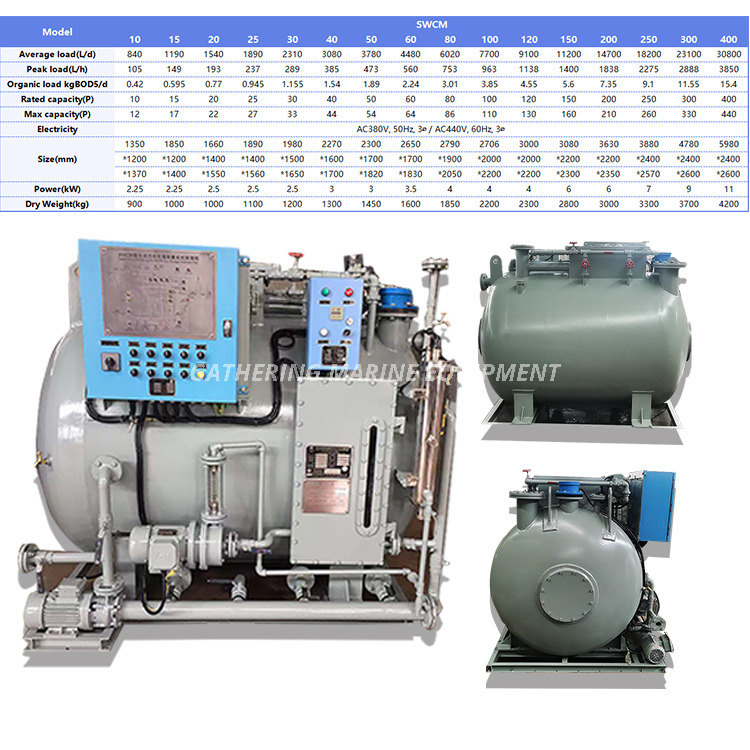

Product model

Model
SWCM
15
20
25
30
Average load(L/d)
1190
1540
1890
2310
peak load(L/h)
149
193
237
289
Rated capacity(P)
15
20
25
30
External dimensions(mm)
1850x1200x1400
1660x1400x1550
1890x1400x1560
1980x1500x1650
Weigt
1000
1000
1000
1200

More styles, welcome to contact us for more details
