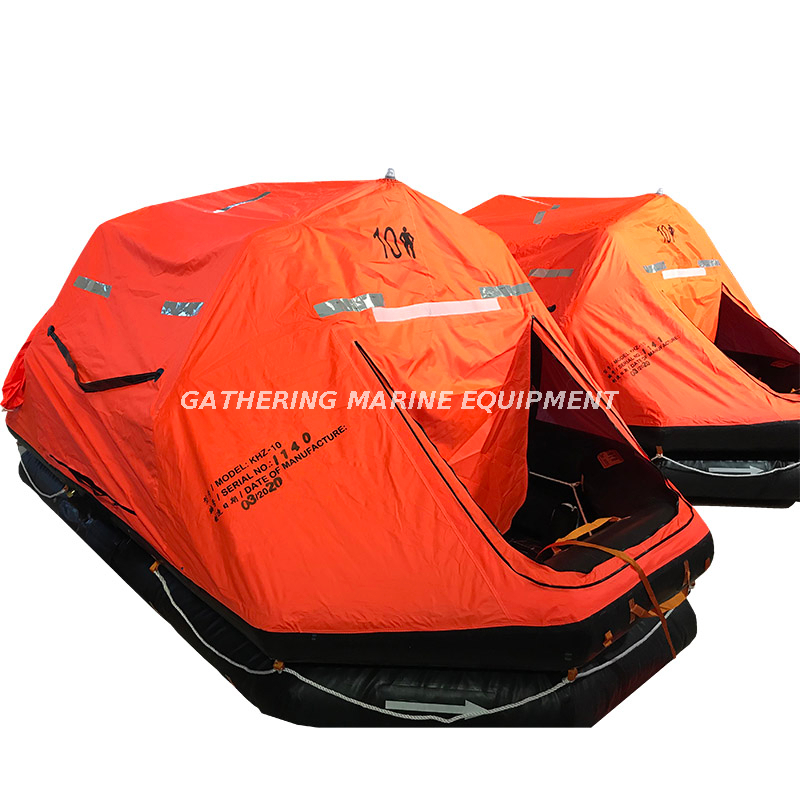

Self-Righting Inflatable Life Raft SOLAS Liferaft

Self-righting Liferaft stowed in a rigid fibreglass container, had been passed the Certification of CCS, EC,DNV-GL. And can be used in the ships engaged on international voyages.
The life Rafts will be delivered complete with emergency Life saving SOLAS A Pack or B pack.
Quantity:

Self-Righting Inflatable Life Raft SOLAS Liferaft

-Application of Self Righting Inflatable Life Raft
It is suitable for installing ships on category I Voyage area.
-Standard of Self Righting Inflatable Life Raft
Z Type Self-Righting Inflatable Liferaft is in accordance with SOLAS(74/96), MSC. 81(70), MSC. 218(82) and LSA, etc.
-Equipment Outfit of Self Righting Inflatable Life Raft
A pack or B pack (Ships engaged on short international voyage)
- Inflation method of Self Righting Inflatable Life Raft
The life-raft can be inflated and opened automatically. If the ship sinks very fast and the life-raft still can float up from water under the action of hydrostatic release unit which can be inflated and opened automatically.

Marine Evacuation system and Liferaft
Liferaft Container (12)

Liferaft Container (13)

-Specification of Self-Righting Inflatable Life Raft
Type Z-6 Z-10 Z-15 Z-20 Z-25 Z-50 Z-100 Z-110 Z-125
Physical form rectangular
octagon
rectangular
octagon
rectangular
octagon
rectangular
octagon
rectangular
octagon
rectangular
dodecagon
rectangular
dodecagon
rectangular
dodecagon
rectangular
dodecagon
Capacity 6 10 15 20 25 50 100 110 125
Length (mm) ,± 100 0 2800 3510 4300 4900 5300 7311 11060 11550 12000
Width (mm),± 100 0 1660 2000 2400 2700 3100 4240 5260 5600 6100
Height (mm),±50 1500 1700 2050 2250 2350 3000 3250 3450 3650
Pack Dia (mm) 615 670 690 730 745 895 1050 1050 1050
Length (mm) 1095 1135 1285 1440 1485 2095 2400 2400 2400
Weight,kg ≤ 85 114 142 185 212 445 780 860 920

Model GRZ6 GRZ10 GRZ15 GRZ20 GRZ25 GRZ50 GRZ100 GRZ110 GRZ125
Capacity 6 10 15 20 25 50 100 110 125
Packing Dim.(mm) 615 670 690 720 735 890 1050 1050 1050
Packing Length.(mm) 1090 1135 1285 1450 1495 2095 2400 2400 2400
Weight ≤ (KG) 87 109 131 180 205 350 800 860 920
