Crane testing water bags revealed these surprising shapes!

Crane testing water bags, also known as water-filled weight bags, work by using the weight of water to simulate a load. This tool plays a crucial role in verifying the safety and performance of lifting equipment or structures such as cranes, winches, spreaders, and gangways.

Water bags are typically made of robust PVC-coated fabric and are equipped with hoses connected to filling and draining valves, making filling and draining water during testing very convenient.

Because of their different functions, water bags take on different forms in different scenarios.

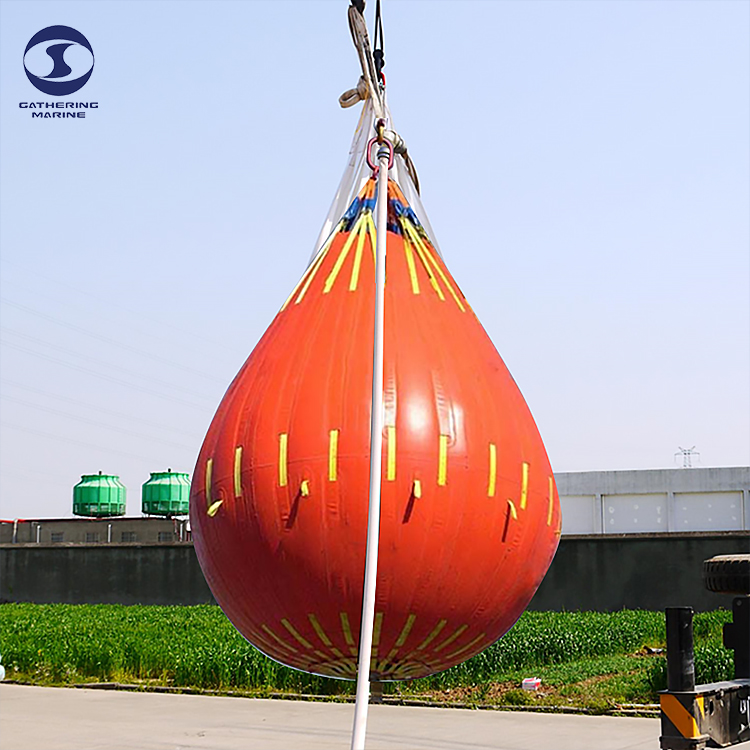

•Foldable water bladders:

This is the most common type, shaped like an inverted parachute and featuring a foldable design. Its biggest advantage is that its volume when empty is only 2% of its full volume, greatly saving storage space and making it very convenient to transport.

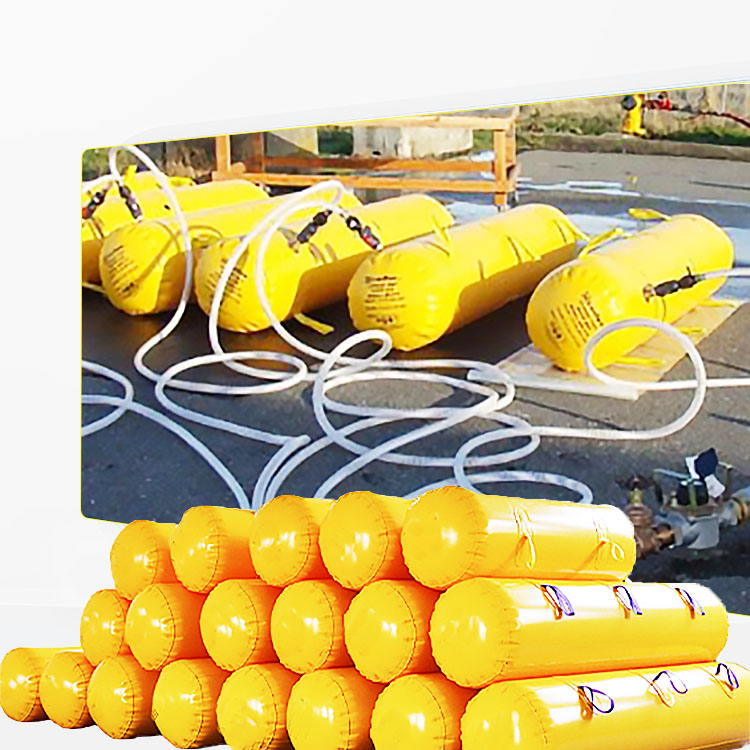

•Cylindrical water bags:

Primarily used for testing lifeboats, rescue boats, slings, gangways, and even bridges, they are ideal for simulating passenger loads.

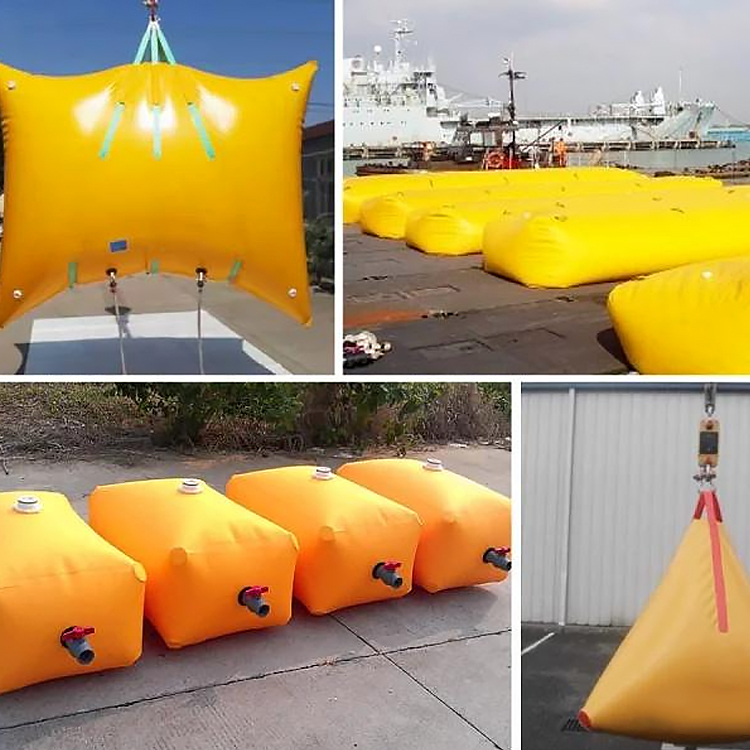

•Specialized water bags:

Designed in unique shapes such as square, pillow, and tetrahedral to meet specific load testing requirements. These customized water bags perform exceptionally well in tests conducted in confined spaces or low-clearance areas, solving the problem of traditionally shaped water bags being unsuitable. Additionally, there is a flat water bag resembling a floor, which can evenly distribute the load, making it particularly suitable for testing the load-bearing capacity of ramps, floors, and hatch covers.

•Significant Advantages of Load Testing Water Bags

Crane testing water bags offer a flexible, safe, and economical solution for load testing, with advantages primarily reflected in the following aspects:

•Economy: Water is readily available locally, and the water bags can be reused multiple times, reducing testing costs.

•Accuracy: Weight can be added gradually and precisely for controlled testing, preventing the crane from suddenly experiencing maximum load pressure and enabling early detection of potential problems.

•Efficiency: The load can be adjusted in real time, simplifying the testing process. Compared to traditional methods, testing time is significantly shortened; tests that previously took a whole day can now be completed in just a few hours.

•Safety: The flexible structure adapts to the shape of the crane or equipment under test, ensuring even load distribution and improving safety and testing accuracy.

•Portability: When not in use, it can be easily folded and stored in a compact container or wooden crate for convenient transportation and quick access.
