The Working Principle And Use of Air Compressor

The Working Principle And Use of Air Compressor

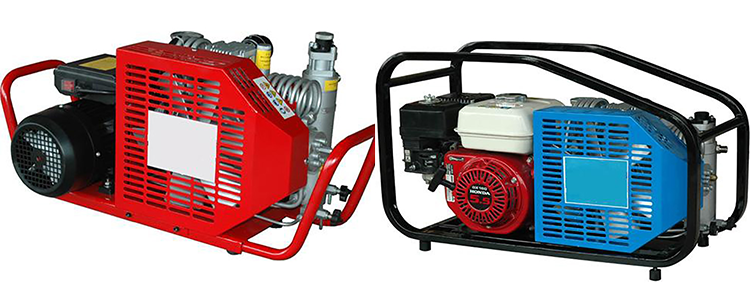

Air Compressor12

The working principle of SCBA air compressor is as follows:

1. **Compressed Air Source:** The air compressor is connected to a clean ambient air source, usually the atmosphere.

2. **Compression:** The primary function of a compressor is to compress incoming air to a high pressure, typically ranging from 2,000 to 4,500 psi (pounds per square inch). This high-pressure air is needed to fill the SCBA cylinder with a sufficient amount of breathable air.

3. **Air Filtration:** Before being compressed, air typically passes through a filtration system to remove impurities, moisture, and contaminants. This ensures that the air supplied to the SCBA cylinders is of high quality and safe to breathe.

4. **Storage:** Compressed air is stored in large cylinders or tanks that are part of the compressor system.

5. **Charging the SCBA cylinder:** When the SCBA cylinder needs to be filled or recharged, connect it to the compressor system. High-pressure air is transferred from the storage tank to the SCBA cylinder, filling it to the required pressure.

6. **Pressure Control:** Compressor systems often have a pressure control mechanism to ensure that the SCBA cylinder is filled to the correct pressure level, which is usually specified by regulatory standards.

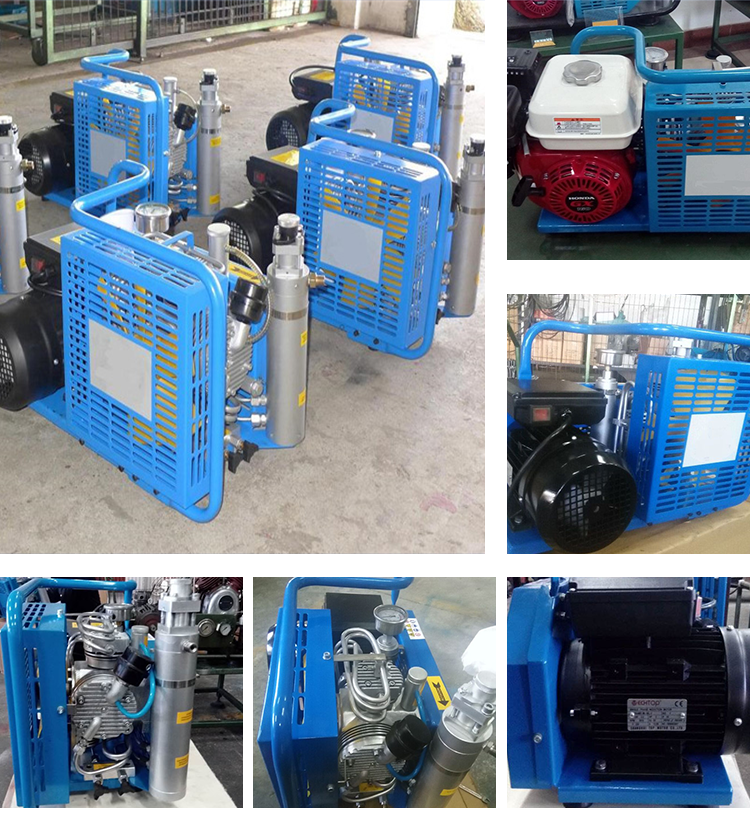

Air Compressor13

Using an SCBA (self-contained breathing apparatus) air compressor typically involves the following steps:

 1. **Safety Precautions:** Make sure you are in a well-ventilated area, free of flammable or hazardous materials, and follow safety guidelines and protocols.

 2. **Power on:** Turn on the power to the air compressor. This may involve turning on the electric motor or starting the petrol or diesel engine, depending on the compressor type.

3. **Check the air inlet:** Make sure there are no obstacles at the compressor air inlet and the surrounding air is clean and safe.

4. **Start Compressor:** Start operation of the compressor according to the manufacturer's instructions. This may involve turning a switch or pressing the start button.

5. **Monitoring Instruments:** Pay close attention to the compressor’s pressure gauge and controller. Be prepared to shut down the compressor if any abnormal readings or problems occur.

6. **Connect the SCBA cylinder:** Connect the SCBA cylinder to be filled to the filling station of the compressor. Make sure the connection is secure.

 7. **Adjust Pressure:** Set the pressure level required to fill the SCBA cylinder. This should comply with regulatory standards and manufacturer specifications.

 8. **Start Filling:** Begin the filling process by activating the compressor's filling mechanism. The compressor pumps clean compressed air into the SCBA cylinder.

9. **Monitor Fill:** Continuously monitor the pressure gauges on the compressor and SCBA cylinder. When the cylinder reaches the preset pressure, the filling process will automatically stop.

10. **Shutdown and Disconnect:** After filling is complete, stop the compressor and turn off the power. Carefully disconnect the SCBA cylinder from the filling station.

 11. **INSPECTION OF FILLED CYLINDERS:** Inspect the filled SCBA cylinder for any visible damage, such as dents or leaks. Do not use damaged cylinders.
