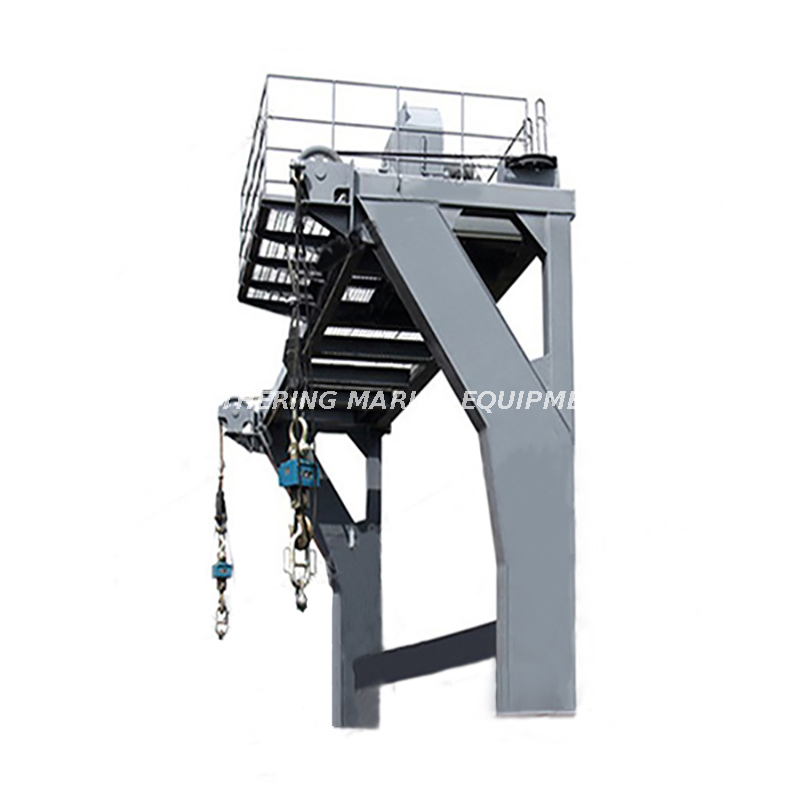

The Oil Rig davit system comprise two fixed arms and electric winch.It is mainly installed on the offshore platform.
And the lifeboat will be lowered to the surface of the water by its own gravity, independent of external power supply.
The Platform Davit is comply with the requirements of SOLAS 1996,IMO Resolution MSC81(70) and MSC.216(82),MSC.218(82) and MSC.226(82), Passed Certification of CCS,BV etc.
Technical data of Offshore Davit for lifeboat
Particulars Model | 85KN | 115KN | 145KN | 175KN |
Max Working load (kN) | 85 | 115 | 145 | 175 |
Breadth (mm) | 2790 | 2850 | 2800 | 3020 |
Height (mm) | 3650 | 3900 | 4300 | 3700 |
Totally weight (kg) | 4500 | 5200 | 5800 | 7500 |
