IMO MEPC244(66) Shipboard Marine Incinerator

Marine Incinerator is designed to get rid of Solid and or Sludge oil waste generated on shipboard. It meets IMO Resolution MEPC 244(66) "Standard Specification for Shipboard Incinerators" and MARPOL73/78 Annex Ⅵ，Regulation16.
Quantity:
Inquire Add to Basket

Marine Incinerator for Garbage Management
Marine Incinerator is designed to get rid of Solid and or Sludge oil waste generated on shipboard.
It meets IMO Resolution MEPC 244(66) "Standard Specification for Shipboard Incinerators" and MARPOL73/78 Annex Ⅵ，Regulation16.
The burning process is controlled by the PLC, monitored by the HMI (Human Machine Interface) and scanned by the flame detector. The combustion chamber temperatures are also regulated automatically by the PLC control system
Marine Ship IncineratorsRS Marine IncineratorMarine Solid waste Incinerator

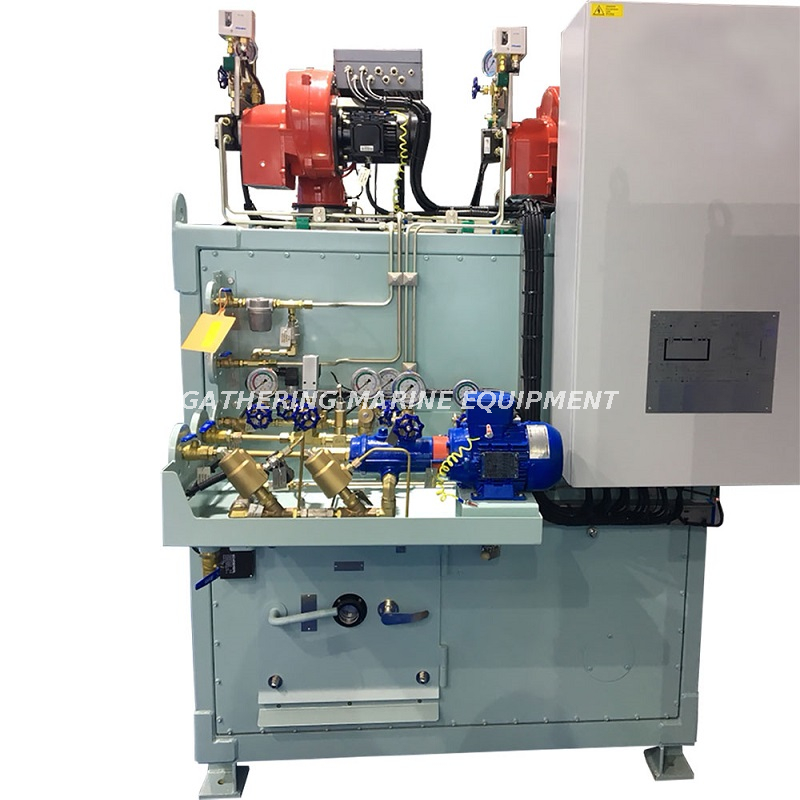

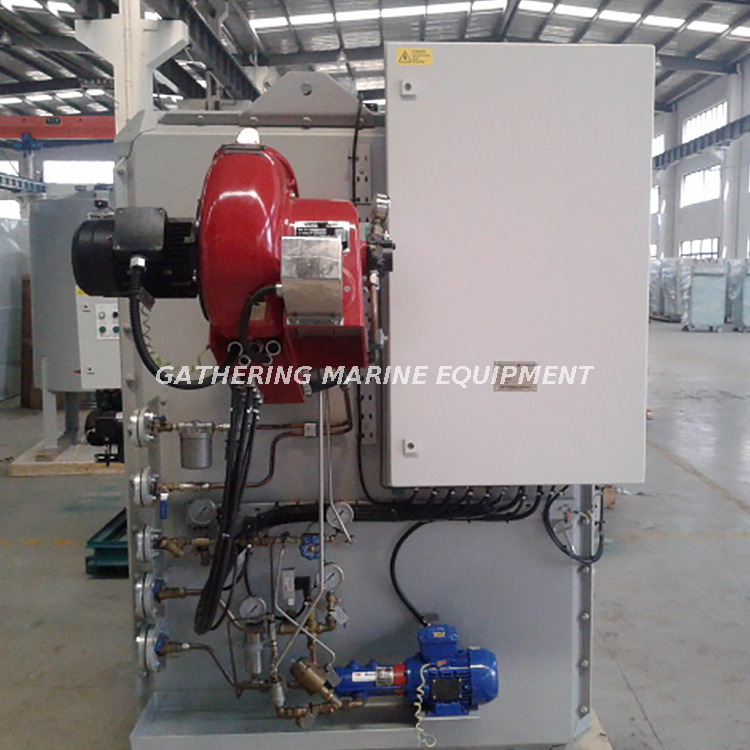

Main parts of the Marine Incinerator
a. Combustion chamber with diesel oil burner, sludge burner, and electric control panel.
b. Flue gas fan
c. Flue gas damper.
d. Sludge tank with circulating pump and heater.

Specification of Marine Incinerator

Model  INC-18 INC-50 INC-80
Capacity(K cal/h) 180000 500000 800000
Length(mm) 1350 1830 3000
Widtn(mm) 1000 1320 1800
Height(mm) 1850 1980 1980
Drv Weight(KG) 1500 2500 4000

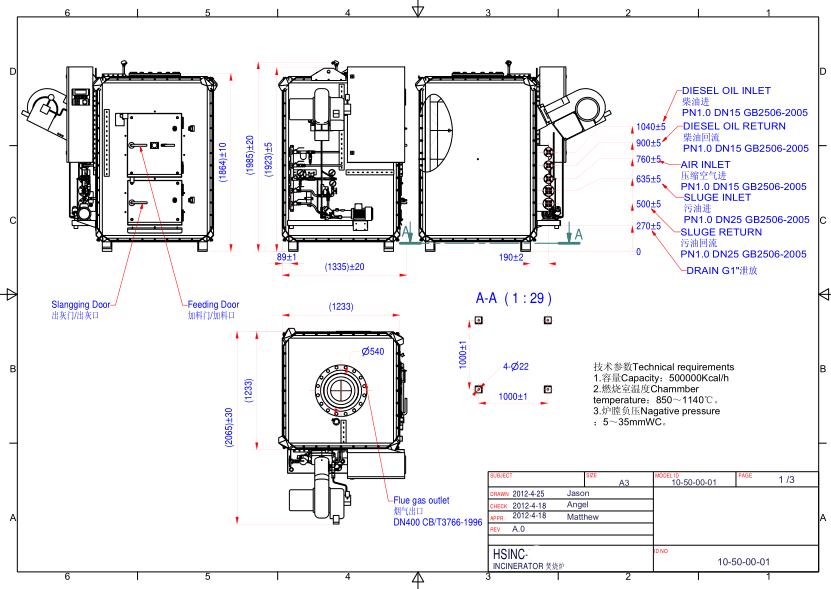

QQ图片20160519100607
