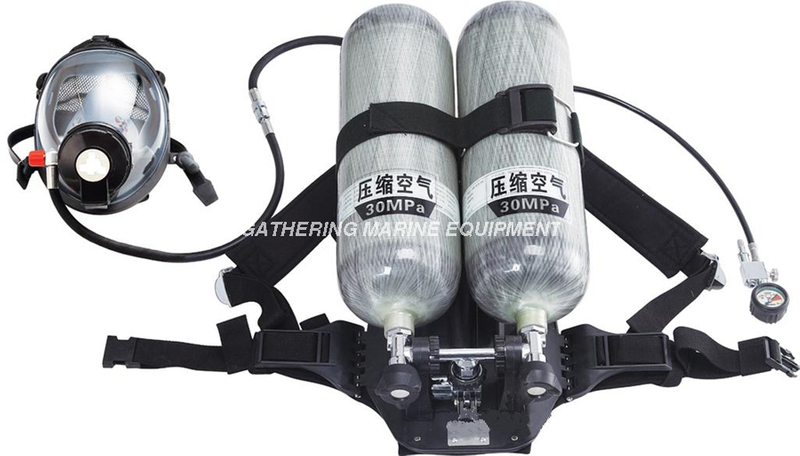

Double cylinders self-contained positive pressure air breathing apparatus

Positive pressure Breathing Apparatus is a new model of self supporting open respirator, which is widely used in fire-fighting, chemistry industry, fired boat, petroleum industry, smelt, mine and transportation.It is a high-performance respiratory positive device designed for fireman and special trained person when trapper in the situation with smoke, pollution, hot vapor and/or hypoxygen, to perform the extinguish, rescue and ambulance.

Quantity:
  • RHZKF6.8*2/39
  • 5L , 6L , 6.8L , 9L
  • CCS EC
  • 30Mpa
  • 40__60 mins
  • Steel, Carbon fiber
  • 16-20kg
  • mask
  • 4~6Mpa

Double cylinders self-contained positive pressure air breathing apparatus


Description

Positive pressure Breathing Apparatus is a new model of self supporting open respirator, which is widely used in fire-fighting, chemistry industry, fired boat, petroleum industry, smelt, mine and transportation.It is a high-performance respiratory positive device designed for fireman and special trained person when trapper in the situation with smoke, pollution, hot vapor and/or hypoxygen, to perform the extinguish, rescue and ambulance.



Details



1.Air cylinder volume : 5L , 6L , 6.8L , 9L

2. Breathing Apparatus working pressure : 300 bar

3. Breathing Apparatus using time : 40__60 mins

4. Breathing Apparatus Certificate : CCS ,EC

5.Easy to wear and adjustable



Breathing Apparatus Accessories



1 Back Care

2 Pressure Gage

3 Full Face Mask

4 Cylinder Valve

5 Air Supply Valve

6 Fast Interface

7 Pressure Reglator

8 Alarm Whistle





Models



Breathing Apparatus Model

Working pressure

Volume

Air Deposit

Using Time

Alarm Pressure

Weight

Packing

Notes

(MPa)

(L)

(L)

(min)

(MPa)

(kg)

(mm)

RHZK5/30

30

5

1500

40-50

4 - 6

≤16

710×290×430

Steel air cylinder

RHZK6/30

30

6

1800

50-60

4 - 6

≤18

710×290×430

RHZKF6.8/30

30

6.8

2040

50-60

4 - 6

≤12

710×290×430

Carbon fibre air cylinder

RHZKF9/30

30

9

2700

80-90

4 - 6

≤16

710×290×430

RHZKF6.8*2/30

30

6.8*2

2040*2

100-120

4 - 6

≤17

/

Double-cylinder breathing apparatus
